Same model may have multiple batches, images only for reference.

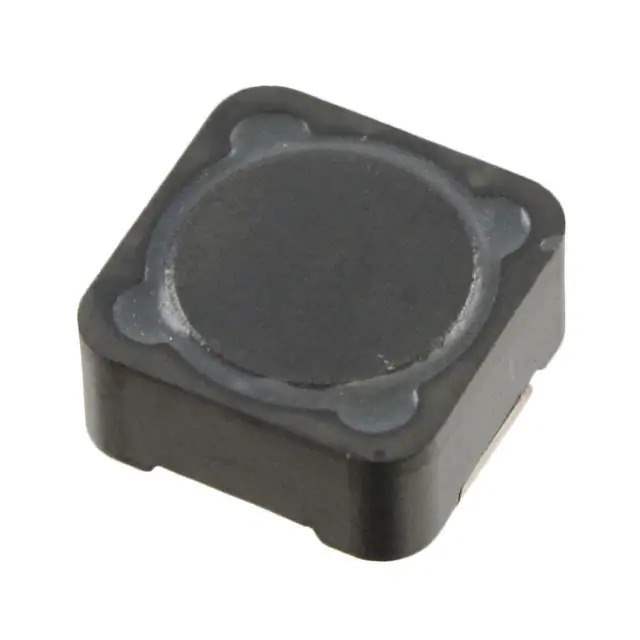

DR125-220-R Real Image
Same model may have multiple batches, images only for reference.

DR125-220-R

Part No DR125-220-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 22UH 3.7A 39.6MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series DR
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 3.7 A
Current - Saturation (Isat) 4.71A
Shielding Shielded
DC Resistance (DCR) 39.6mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max) 0.236" (6.00mm)
Standard Package 600 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 585825-DR125-220-R
Ultra Librarian 3D Model Ultra Librarian DR125-220-R CAD Model

Description

The 585825-DR125-220-R is a fixed inductor from the DR series by Eaton Bussmann.

  • Series: DR
  • Type: Fixed Inductor
  • Core Type: Drum Core, Wirewound
  • Package: Tape and Reel
  • Shielding: Shielded
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Inductance: 22 µH
  • Tolerance: ±20%
  • Height: 0.236" (6.00mm)
  • DCR: 39.6mOhm
  • Operating Temperature: -40°C to 125°C
  • Current Rating: 3.7A
  • Inductance Frequency Test: 100 kHz
  • Mounting Type: Surface Mount
  • Core Material: Ferrite
  • Status: Active
