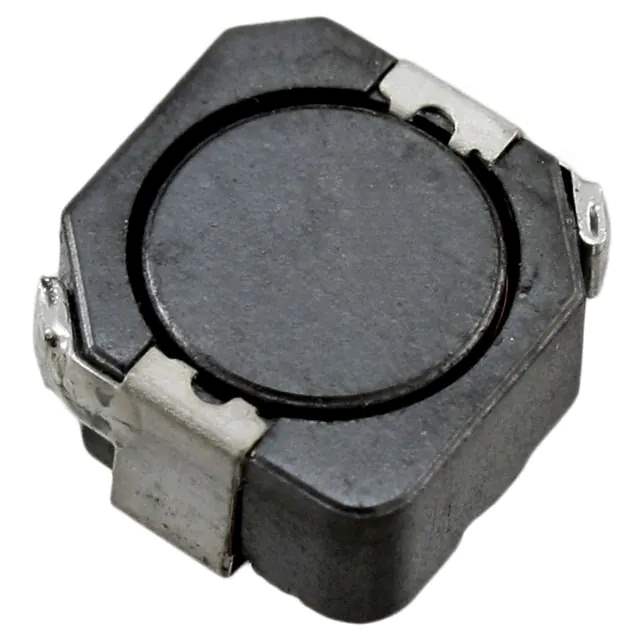

DR1050-120-R Real Image
Same model may have multiple batches, images only for reference.

DR1050-120-R

Part No DR1050-120-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 12UH 3.94A 30.4MOHM SM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series DR1050
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 12 µH
Tolerance ±30%
Current Rating (Amps) 3.94 A
Current - Saturation (Isat) 4.1A
Shielding Shielded
DC Resistance (DCR) 30.4mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 585808-DR1050-120-R
Ultra Librarian 3D Model Ultra Librarian DR1050-120-R CAD Model

Description

The DR1050-120-R is a drum core wirewound inductor from Eaton Bussmann.

  • Type: Fixed Inductor
  • Inductance: 12 µH
  • Tolerance: ±30%
  • Shielding: Shielded
  • Size: 0.413" L x 0.406" W (10.50mm x 10.30mm)
  • Seated Height (Max): 0.197" (5.00mm)
  • DC Resistance (DCR): 30.4mOhm max
  • Current Rating: 3.94 A
  • Operating Temperature: -40°C to 125°C
  • Package: Nonstandard
  • Packaging: Tape & Reel
  • Standard Package: 500 pcs
  • Core Material: Ferrite
  • Mounting: Surface Mount
  • Series: DR1050
  • Status: Active
