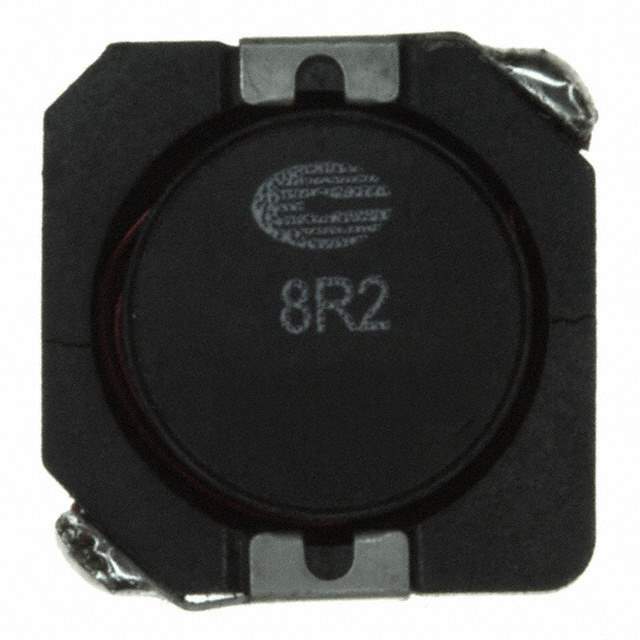

Same model may have multiple batches, images only for reference.

DR1030-8R2-R

Name: DR1030-8R2-R
Brand: Eaton Bussmann
SKU: 772827
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	DR1030-8R2-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 8.2UH 3.3A 34.1 MOHM / Inductor Power Shielded Drum Core 8.4uH 30% 100KHz Ferrite 3.3A 0.0341Ohm DCR T/R
Datasheet	DR1030-8R2-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton
Series	DR1030
Packaging	Reel package
Type	Wirewound
Material - Core	Ferrite
Inductance	8.2μH
Tolerance	±30%
Current Rating	3.3A
Current - Saturation	3.54A
Shielding	Shielded
DC Resistance (DCR)	34.1 mOhm Max
Operating Temperature Range	-40°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.413" L x 0.405" W (10.50mm x 10.30mm)
Height - Seated (Maximum)	0.118" (3.00mm)
Win Source Part Number	772827-DR1030-8R2-R
Popularity	Medium
Supply and Demand Status	Balance
Family Name	DR1030
Introduction Date	May 26, 2006
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2025
Ultra Librarian 3D Model	Ultra Librarian DR1030-8R2-R CAD Model

Alternative Products

Description

The Eaton DR1030 series inductor is a wirewound shielded component with an inductance of 8.2μH and a current rating of 3.3A.

Core Material: Ferrite
DC Resistance: 34.1 mOhm
Operating Temperature Range: -40°C to 125°C
Tolerance: ±30%
Current Saturation: 3.54A
Test Frequency: 100kHz
Mounting Type: SMD
Package: Non-standard
Dimensions: 0.413" L x 0.405" W (10.50mm x 10.30mm)
Height: 0.118" (3.00mm)
Applications: Inductors, coils, and chokes
