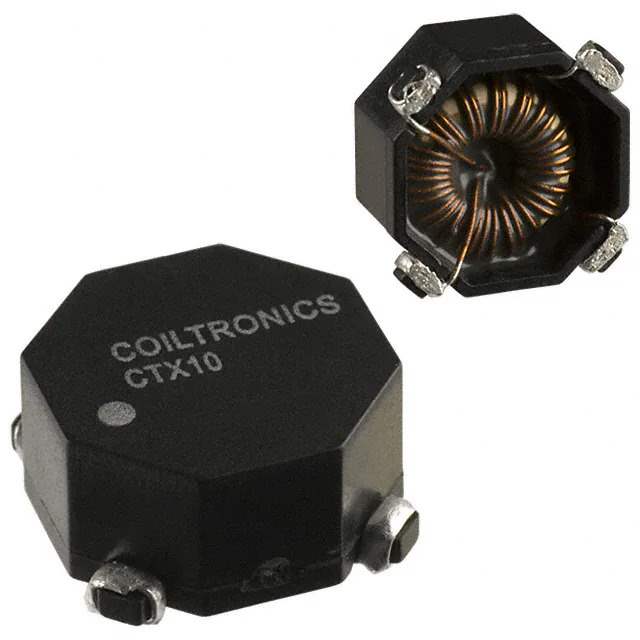

The 580977-CTX10-3P-R is an array of signal transformers from Eaton Bussmann's Econo-Pac™ series. It comes in a tape and reel package and is unshielded.

• The size of the transformer is: 0.550" L x 0.550" W (13.97mm x 13.97mm), with a height of 0.190" (4.83mm).
• The array consists of: two coils, with an inductance of 39.15 µH when connected in series and 9.79 µH when connected in parallel.
• The current rating is: 1.35A in series and 2.7A in parallel.
• The DC resistance (DCR) is: 33mOhm max in parallel and 131mOhm max in series.
• The operating temperature range is: -40°C to 85°C.
• The 580977-CTX10-3P-R is commonly used in: surface mount applications where compact size and reliable signal transformation are required.
• With its: high-quality construction and reliable performance, this active component is a popular choice in the market.
