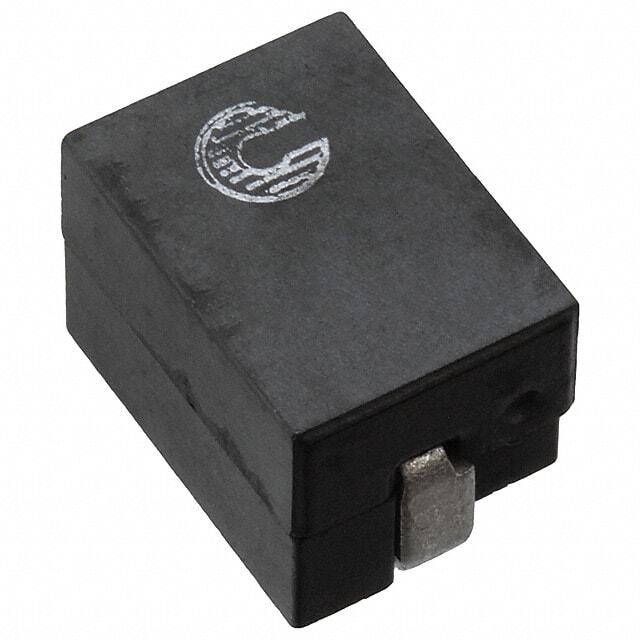

Same model may have multiple batches, images only for reference.
CTX01-18738-R
Same model may have multiple batches, images only for reference.

CTX01-18738-R

Part No CTX01-18738-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 210NH 50A 0.29MOHM SMD / 210 nH Unshielded Wirewound Inductor 50 A 0.29mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series FLAT-PAC
Package Tape & Reel
Product Status Active
Type Wirewound
Inductance 210 nH
Tolerance ±10%
Current Rating (Amps) 50 A
Current - Saturation (Isat) 55A
Shielding Unshielded
DC Resistance (DCR) 0.29mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 300 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.421" L x 0.303" W (10.70mm x 7.70mm)
Height - Seated (Max) 0.295" (7.50mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 916183-CTX01-18738-R
Ultra Librarian 3D Model Ultra Librarian CTX01-18738-R CAD Model

Description

The 916183-CTX01-18738-R is a wirewound inductor from the FLAT-PAC series by Eaton Bussmann.

  • Type: Wirewound
  • Series: FLAT-PAC
  • Mounting: Surface Mount
  • Package/Case: Nonstandard
  • Size: 0.421" L x 0.303" W (10.70mm x 7.70mm)
  • Height: 0.295" (7.50mm)
  • Inductance: 210 nH
  • DC Resistance (DCR): 0.29mOhm
  • Current Rating: 50 A
  • Temperature Range: -40°C to 125°C
  • Packaging: Tape & Reel
  • Standard Package: 500 pcs
  • Status: Active
  • ECCN: EAR99
  • Shielding: Unshielded
  • Tolerance: ±10%
