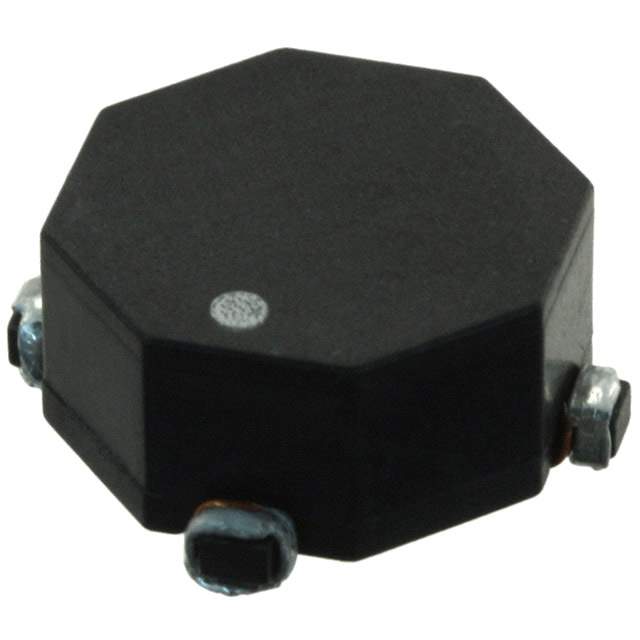

CMS3-3-R Real Image
Same model may have multiple batches, images only for reference.

CMS3-3-R

Part No CMS3-3-R
Manufacturer Eaton Bussmann
Catalog Common Mode Chokes
Description CMC 64UH 4.75A 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 18 Weeks
Features 2 Line Common Mode Choke Surface Mount 4.75A DCR 7mOhm (Typ)
Manufacturer Eaton Bussmann
Series CMS
Package Reel - TR
Operating Temperature Range -40°C ~ 160°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Other Part Number CMS33R, CMS3-3-ND, CMS3-3-R-ND, 513-1790-1, CMS3-3, 513-1790-2, 513-1790-6
Quantity per package 600
Popularity High
Supply and Demand Status Balance
Win Source Part Number 915633-CMS3-3-R
Ultra Librarian 3D Model Ultra Librarian CMS3-3-R CAD Model

Description

The Eaton Bussmann CMS3-3-R is a 2 Line Common Mode Choke with a surface mount package and a horizontal, 4 PC pad.

  • Lines: 2
  • Type: Common Mode Choke
  • Mounting Type: Surface Mount
  • Package: Horizontal, 4 PC pad
  • DCR: 7mOhm (Typ)
  • Maximum Current Rating: 4.75A
  • Popularity: High
  • Supply and Demand Status: Balance
  • Estimated Production Lead Time: 18 weeks
  • ECCN: EAR99
  • HTSUS: 8548.90.0100
