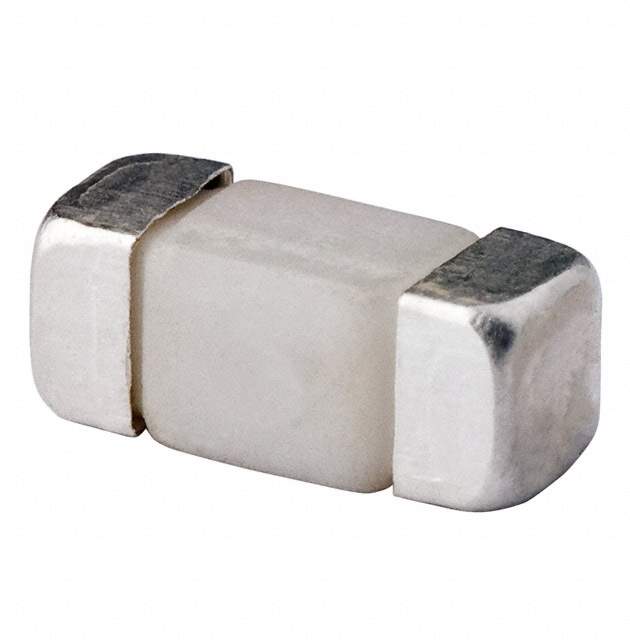

CB61F5A-TR1 Real Image
Same model may have multiple batches, images only for reference.

CB61F5A-TR1

Part No CB61F5A-TR1
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BRD MNT 5A 125VAC/VDC 2SMD / 5 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Mounting Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 5 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Case / Package 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A AC, 300A DC
Melting I2t 7.7
Approval Agency CQC, cULus, PSE
Size / Dimension 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm)
DC Cold Resistance 0.013 Ohms
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number 283-4108-1,CB61F5ATR1,283-4108-2,283-4108-6
Standard Package 1,000
Win Source Part Number 1334837-CB61F5A-TR1
Ultra Librarian 3D Model Ultra Librarian CB61F5A-TR1 CAD Model

Description

The Eaton - Electronics Division 1334837-CB61F5A-TR1 is a board mount fuse designed for circuit protection.

  • Voltage Rating: 125V AC and DC
  • Response Time: Fast Blow
  • Breaking Capacity @ Rated Voltage: 100A AC and 300A DC
  • Melting I2t: 7.7
  • DC Cold Resistance: 0.013 Ohms
  • Package: 2-SMD, square end block
  • Mounting: Surface Mountable
  • Standard Package: 1,000
  • Approval: CQC, cULus, and PSE
  • RoHS3 Compliant: Yes
