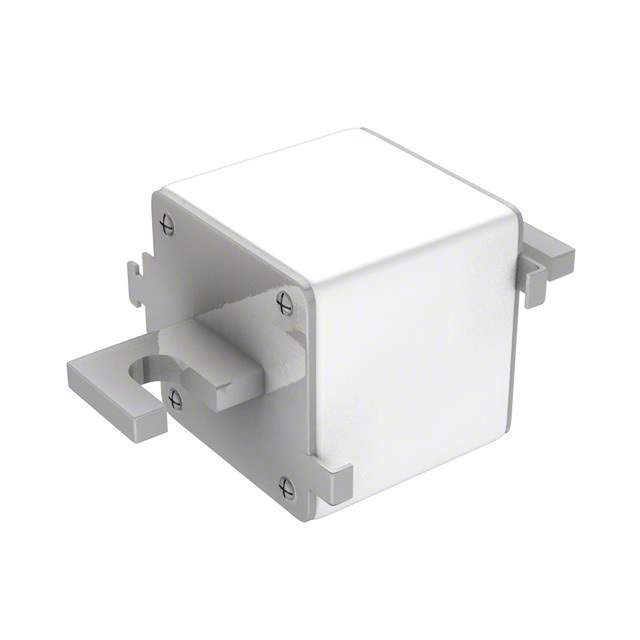

170M5310

Part No 170M5310
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE SQUARE 500A 700VAC RECT / 500A 700 V AC DC Fuse Square Bolt Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Eaton - Bussmann Electrical Division
Package Bulk
Mounting Type Bolt Mount
Fuse Type Square
Current Rating (Amps) 500A
Voltage Rating - AC 700 V
Applications Electrical, Industrial
Features Indicating
Approval Agency CSA, UR
Breaking Capacity @ Rated Voltage 200kA
Package / Case Rectangular, Blade
Dimension 1.969" L x 2.402" W x 3.031" H (50.00mm x 61.00mm x 77.00mm)
Melting I2t 21500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 1
Win Source Part Number 968061-170M5310
Ultra Librarian 3D Model Ultra Librarian 170M5310 CAD Model

Description

The Eaton - Bussmann Electrical Division 968061-170M5310 is a square fuse type with a voltage rating of 700 V.

  • Manufacturer: Eaton - Bussmann Electrical Division
  • Fuse Type: square
  • Voltage Rating: 700 V
  • Breaking Capacity: 200kA
  • Current Rating: 500A
  • Package: rectangular and blade-shaped
  • Mounting Type: bolt mount
  • Application: electrical and industrial applications
  • Indicating: indicating
  • Packaging: bulk
  • Dimension: 1.969" L x 2.402" W x 3.031" H (50.00mm x 61.00mm x 77.00mm)
  • ECCN: EAR99 compliant
  • Melting I2t: 21500
  • Approvals: CSA and UR
