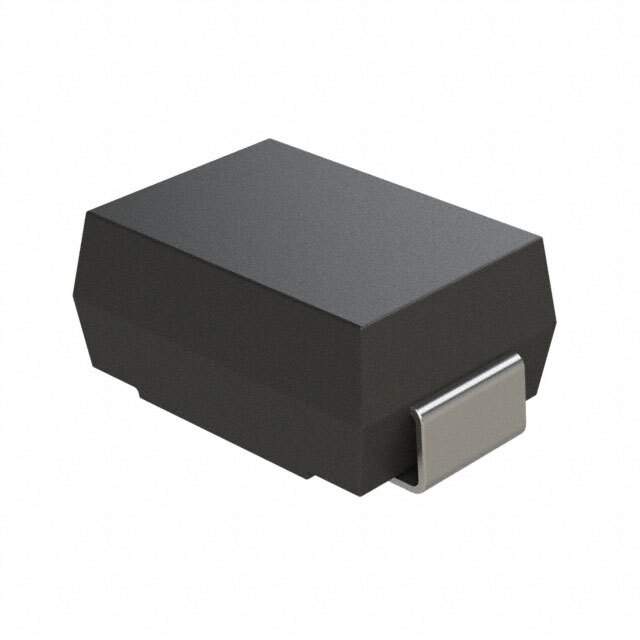

10BJ24CA Real Image
Same model may have multiple batches, images only for reference.

10BJ24CA

Part No 10BJ24CA
Manufacturer Eaton Bussmann
Catalog TVS - Diodes
Description TVS DIODE 24VWM 38.9VC SMB / 38.9V Clamp 25.7A Ipp Tvs Diode Surface Mount SMB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 38.9V
Current - Peak Pulse (10/1000µs) 25.7A
Power - Peak Pulse 1000W (1kW)
Power Line Protection No
Applications Telecom
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Surface Mount
Case / Package DO-214AA, SMB
Supplier Device Package SMB
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 283-10BJ24CATR
Standard Package 3,000
Win Source Part Number 1334715-10BJ24CA
Ultra Librarian 3D Model Ultra Librarian 10BJ24CA CAD Model

Description

The Eaton - Electronics Division 1334715-10BJ24CA is a bidirectional SMB zener diode with a reverse standoff voltage of 24V and a breakdown voltage of 26.7V.

  • Manufacturer: Eaton - Electronics Division
  • Product Number: 1334715-10BJ24CA
  • Type: Bidirectional SMB Zener Diode
  • Reverse Standoff Voltage: 24V
  • Breakdown Voltage: 26.7V
  • Clamping Voltage: 38.9V
  • Peak Pulse Power: 1000W (1kW)
  • Current Peak Pulse: 25.7A
  • Mounting: Surface Mount
  • Temperature Range: -55°C to 150°C
  • Application: Telecom
