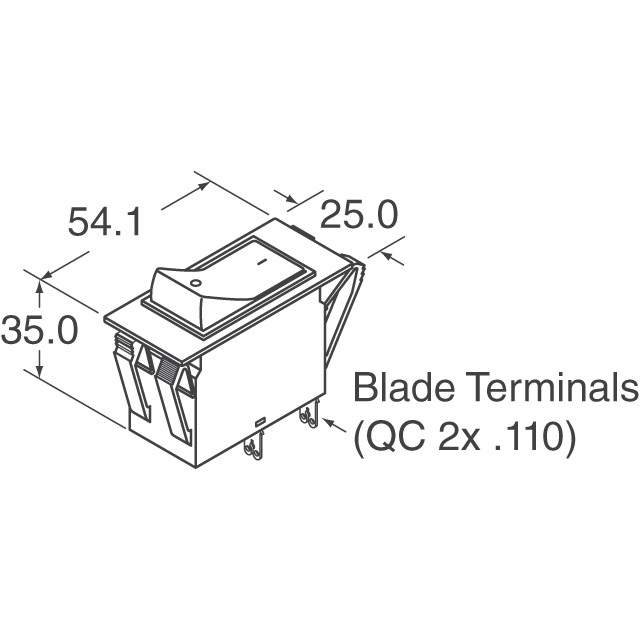

3120-F321-P7T1-W14FR4-20A

Part No 3120-F321-P7T1-W14FR4-20A
Manufacturer E-T-A
Catalog Circuit Breakers
Description CIR BRKR THRM 20A 250VAC 50VDC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer E-T-A
Status Active
Breaker Type Thermal
Current Rating 20A
Voltage Rating - AC 250V
Voltage Rating - DC 50V
Number of Poles 2
Actuator Type Rocker
Illumination Red
Illumination Voltage (Nominal) 185V
Mounting Panel Mount
Win Source Part Number 1040056-3120-F321-P7T1-W14FR4-20A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 10
Ultra Librarian 3D Model Ultra Librarian 3120-F321-P7T1-W14FR4-20A CAD Model

Description

The 446674 is a panel mount circuit breaker that has a current rating of 20A and a voltage rating of 250V AC and 50V DC from E-T-A.

  • Actuator Type: rocker
  • Illumination: red
  • Illumination Voltage: 185V
  • Breaker Type: thermal
  • Category: Circuit Protection
  • Poles: two
  • Popularity: medium
  • Supply and Demand: balanced
  • Package Quantity: 10 pieces
