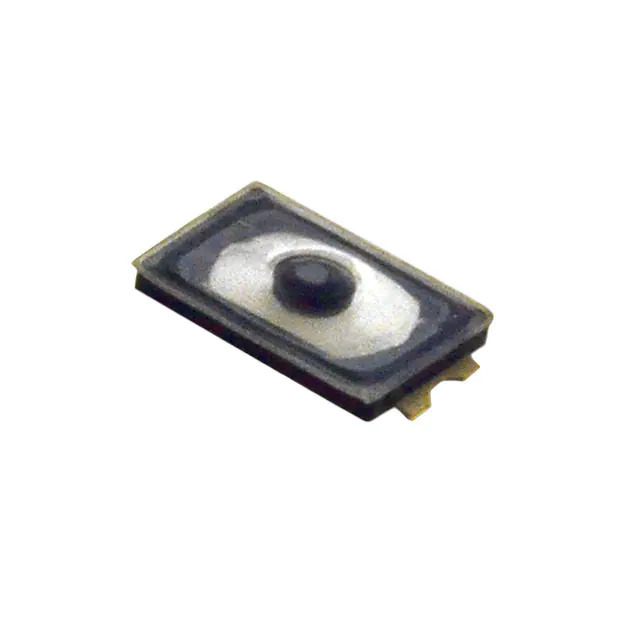

TL3780AF240QG

Name: TL3780AF240QG
Brand: E-Switch
SKU: 1376435
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TL3780AF240QG
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.02A 15V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	TL3780AF240QG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	E-Switch
Series	TL3780
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	0.60mm
Actuator Length, Right Angle	-
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	3.00mm x 2.00mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Operating Force	240gf
Ingress Protection	-
Features	-
Temperature Range - Operating	-40°C ~ 85°C
Actuator Material	-
Switch Travel	0.13mm
Mechanical Life	500,000 Cycles
Base Product Number	TL3780
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	1376435-TL3780AF240QG
Ultra Librarian 3D Model	Ultra Librarian TL3780AF240QG CAD Model

Description

The 1376435-TL3780AF240QG is a tactile switch from E-Switch's TL3780 series.

Mounting Style: Surface Mount
Size: 3.00mm x 2.00mm
Switch Function: Off-Mom
Circuit: SPST-NO
Actuator Height: 0.60mm
Operating Force: 240gf
Mechanical Life: 500,000 Cycles
Contact Rating: 0.05A @ 12VDC
Product Status: Active
REACH Status: Unaffected
