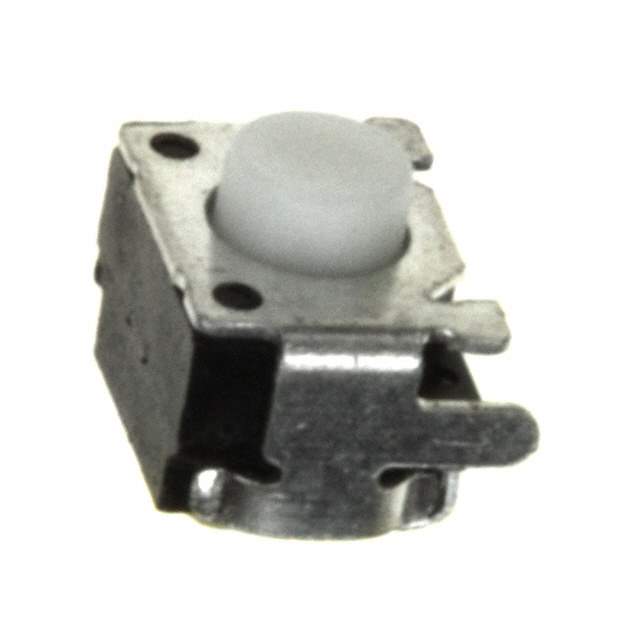

Same model may have multiple batches, images only for reference.

TL3340AF160QG

Name: TL3340AF160QG
Brand: E-Switch
SKU: 803813
Availability: InStock
Rating: 4.84 (53 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TL3340AF160QG
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / TL3340AF160QG - RATING: 12VDC, 50mA, CONTACT RESISTANCE: 500 MILLI OHMS MAX ,
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	E-Switch
Packaging	Reel
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating at Voltage	0.05A at 12VDC
Actuator Type	Standard
Mounting Style	Surface Mount, Right Angle
Actuator Length, Right Angle	3.40mm
Actuator Orientation	Side Actuated
Termination Style	Gull Wing
Outline	4.00mm x 3.30mm
Illumination	Non-Illuminated
Operating Force	160gf
Temperature Range - Operating	-35°C ~ 85°C
Actuator Material	Polyphthalamide (PPA)
Switch Travel	0.20mm
Mechanical Life	100,000 Cycles
Manufacturer Pack Quantity	2,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	803813-TL3340AF160QG
Ultra Librarian 3D Model	Ultra Librarian TL3340AF160QG CAD Model

Description

The E-Switch TL3340AF160QG is a surface mount, right angle SPST-NO switch with a standard actuator type.

Actuator Material: Polyphthalamide (PPA)
Switch Travel: 0.20mm
Illumination: Non-illuminated
Illumination Voltage (Nominal): -
Mechanical Life: 100,000 cycles
Operating Force: 160gf
Temperature Range: -35°C ~ 85°C
Packaging: Reel
ECCN: EAR99
Manufacturer Pack Quantity: 2,000
Actuator Length: 3.40mm
Actuator Orientation: Side actuated
