Same model may have multiple batches, images only for reference.

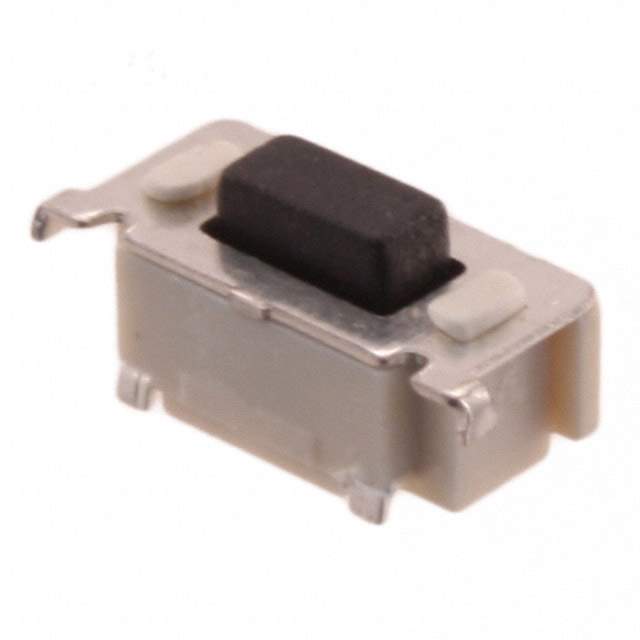

TL3330AF260QG Real Image
Same model may have multiple batches, images only for reference.

TL3330AF260QG

Part No TL3330AF260QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
TL3330AF260QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 13 Weeks
Features Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Manufacturer E-Switch
Series TL3330
Package Reel - TR
Operating Temperature Range -30°C ~ 70°C
Mounting Surface Mount, Right Angle
Family Name TL3330
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Part Number EG4389TR, EG4389CT, EG4389DKR
Quantity per package 2300
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844494-TL3330AF260QG
Ultra Librarian 3D Model Ultra Librarian TL3330AF260QG CAD Model

Description

The TL3330AF260QG is a tactile switch component manufactured by E-Switch. This TL3330 series component is SPST-NO side-actuated and surface-mounted at a right angle.

  • Supply and Demand Status: limited
  • Pieces per Package: 2300
  • Estimated Production Lead Time: 13 weeks
  • ECCN: EAR99
