Same model may have multiple batches, images only for reference.

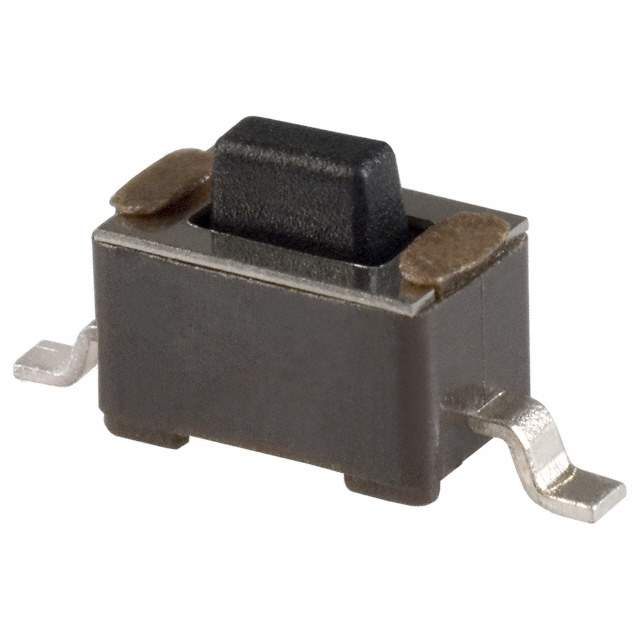

TL3302BF180QG/TR Real Image
Same model may have multiple batches, images only for reference.

TL3302BF180QG/TR

Part No TL3302BF180QG/TR
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TL3302BF180QG/TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr E-Switch
Series TL3302
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Rectangular Button
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 5.00mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 3.50mm
Illumination Non-Illuminated
Operating Force 180gf
Features Tactile Feedback
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyphenylene Sulfide (PPS)
Switch Travel 0.25mm
Mechanical Life 40,000 Cycles
Base Product Number TL3302
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1315985-TL3302BF180QG/TR
Ultra Librarian 3D Model Ultra Librarian TL3302BF180QG/TR CAD Model

Description

The E-Switch TL3302BF180QG/TR is a tactile switch that features a rectangular button actuator type, SPST-NO circuit, and a switch function of off-mom. Bold the product name TL3302BF180QG/TR and manufacturer E-Switch.

  • Actuator Type: Rectangular Button
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Termination Style: Gull Wing
  • Mounting Technology: Surface Mount
  • Series: TL3302
  • Operating Temperature: -20°C to 70°C
  • Package: Tape & Reel
  • Outline: 6.00mm x 3.50mm
  • Mechanical Life: 40,000 Cycles
  • Illumination Type: Non-Illuminated
  • ECCN: EAR99
  • REACH Status: Unaffected
