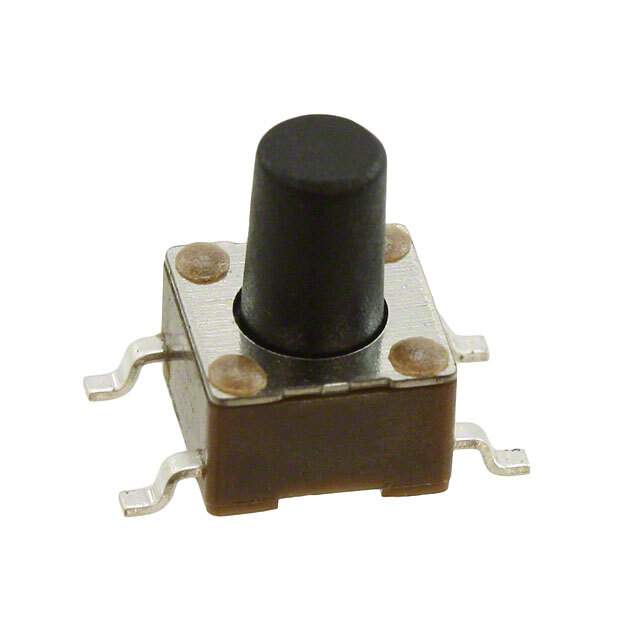

TL3301PF160QG Real Image
Same model may have multiple batches, images only for reference.

TL3301PF160QG

Part No TL3301PF160QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TL3301PF160QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr E-Switch
Series TL3301
Package Tape & Reel (TR),Cut Tape (CT)
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 8.50mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number TL3301
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names Q4400189AB,P010593,EG4562TR,EG4562DKR,EG4562CT,EG4562DKR-ND,EG4562DKRINACTIVE
Standard Package 650
Win Source Part Number 1107095-TL3301PF160QG
Ultra Librarian 3D Model Ultra Librarian TL3301PF160QG CAD Model

Description

E-Switch presents its TL3301PF160QG electronic component.

  • Component Type: Tactile switch
  • Circuit: SPST-NO
  • Switch Function: Off-mom
  • Termination Style: Gull wing
  • Mounting: SMD(SMT)
  • Standard Package: 650
  • Actuator Height off PCB, Vertical: 8.50mm
  • Mechanical Life: 100,000 cycles
  • Operating Force: 160gf
