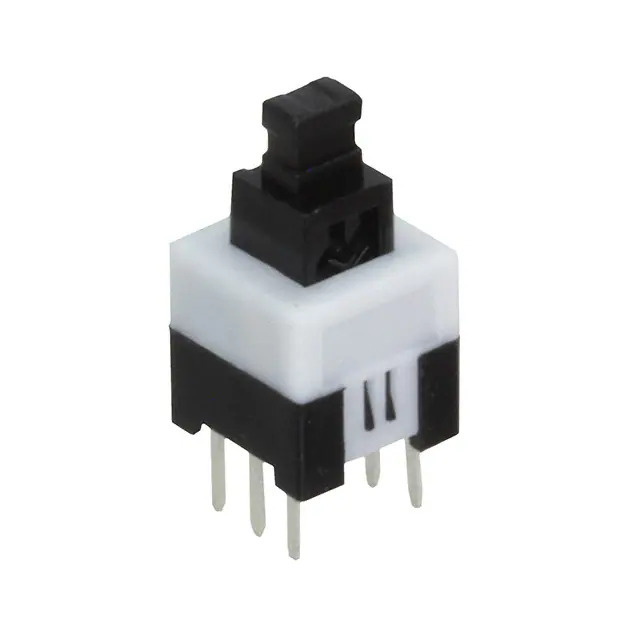

TL2230EEF100 E-Switch
Same model may have multiple batches, images only for reference.

TL2230EEF100

Part No TL2230EEF100
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 0.1A 30V / Pushbutton Switch DPDT Standard Through Hole
Datasheet
TL2230EEF100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series TL2230
Package Bulk
Product Status Active
Mounting Type Through Hole
Type Standard
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap -
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features -
Panel Cutout Dimensions -
Mechanical Life -
Electrical Life 10,000 Cycles
Base Product Number TL2230
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9033
Win Source Part Number 1376085-TL2230EEF100
Ultra Librarian 3D Model Ultra Librarian TL2230EEF100 CAD Model

Description

The TL2230EEF100 is a pushbutton switch from the TL2230 series manufactured by E-Switch.

  • Switch Type: Standard
  • Mounting Style: Through-Hole
  • Current Rating: 100mA DC
  • Voltage Rating: 30V DC
  • Circuit Configuration: DPDT
  • Switch Function: On-On
  • Actuator Type: Plunger for Cap
