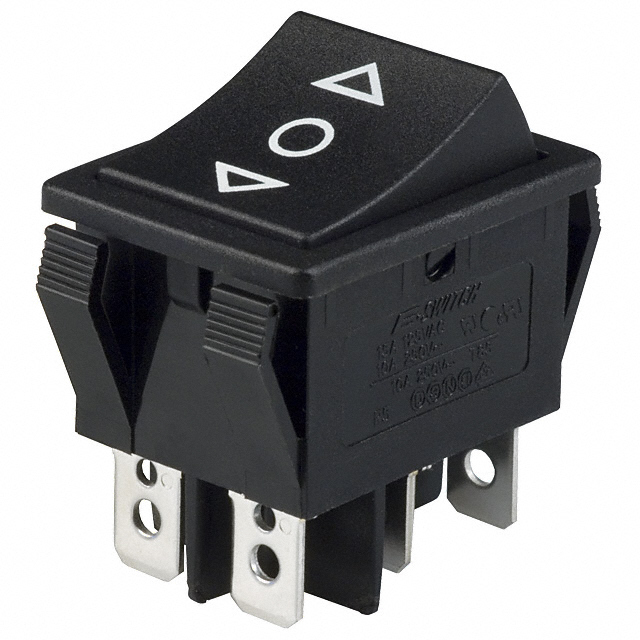

R5DBLKBLKHF0 E-Switch – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

R5DBLKBLKHF0

Part No R5DBLKBLKHF0
Manufacturer E-SWITCH
Catalog Rocker Switches
Description SWITCH ROCKER DPDT 15A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesRocker Switches
Mfr E-Switch
Series R5
Packaging Bulk
Part Status Active
Mounting Type Panel Mount, Snap-In
Circuit DPDT
Switch Function On-Off-On
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking Triangular Arrows with O
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Rectangular - 30.00mm x 22.20mm
Operating Temperature -20°C ~ 55°C
Approval Agency CSA, UL
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number R5DBLKBL
Ultra Librarian 3D Model Ultra Librarian R5DBLKBLKHF0 CAD Model
