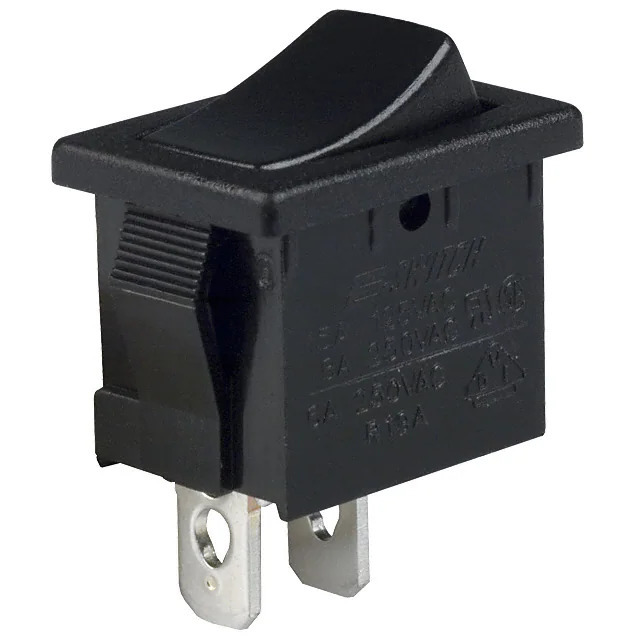

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr E-Switch
Series R1966
Package Bulk
Product Status Active
Mounting Type Panel Mount, Snap-In
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Quick Connect - 0.187" (4.7mm)
Ingress Protection -
Features -
Panel Cutout Dimensions Rectangular - 19.40mm x 13.00mm
Temperature Range - Operating -30°C ~ 65°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number R1966
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376192-R1966ABLKBLKEF
Ultra Librarian 3D Model Ultra Librarian R1966ABLKBLKEF CAD Model

Description

The R1966ABLKBLKEF is a rocker switch manufactured by E-Switch.

  • Mounting Type: Panel mount, snap-in
  • Actuator Type: Concave (curved)
  • Circuit: SPST
  • Switch Function: on-off
  • Current Rating (AC): 15A
  • Voltage Rating (AC): 125VAC
  • Actuator Color: Black
  • Termination Style: Quick connect
  • Mechanical Life: 30,000 cycles
  • Electrical Life: 10,000 cycles
  • Panel Cutout: Rectangular - 19.40mm x 13.00mm
