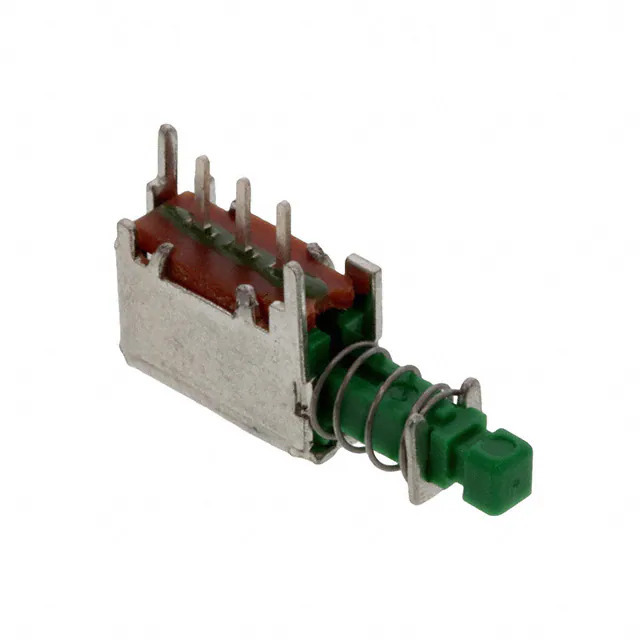

LC1258OASP E-Switch
Same model may have multiple batches, images only for reference.

LC1258OASP

Part No LC1258OASP
Manufacturer E-Switch
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 0.3A 30V
Datasheet
LC1258OASP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr E-Switch
Series LC
Package Bulk
Product Status Active
Mounting Type Through Hole, Right Angle
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 30 V
Actuator Type Plunger for Cap
Actuator Marking No Marking
Color - Actuator/Cap -
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features -
Panel Cutout Dimensions -
Temperature Range - Operating -20°C ~ 85°C
Mechanical Life -
Electrical Life 10,000 Cycles
Base Product Number LC1258
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376193-LC1258OASP
Ultra Librarian 3D Model Ultra Librarian LC1258OASP CAD Model

Description

The LC1258OASP is a pushbutton switch from E-Switch.

  • Mounting Type: Through Hole, Right Angle
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Current Rating: 300mA (DC)
  • Voltage Rating - DC: 30V DC
  • Actuator Type: Plunger for Cap
  • Packaging: Bulk
  • Illumination: Non-Illuminated
  • Termination Style: PC Pin
  • Electrical Life: 10,000 Cycles
  • Operating Temperature: -20°C ~ 85°C
