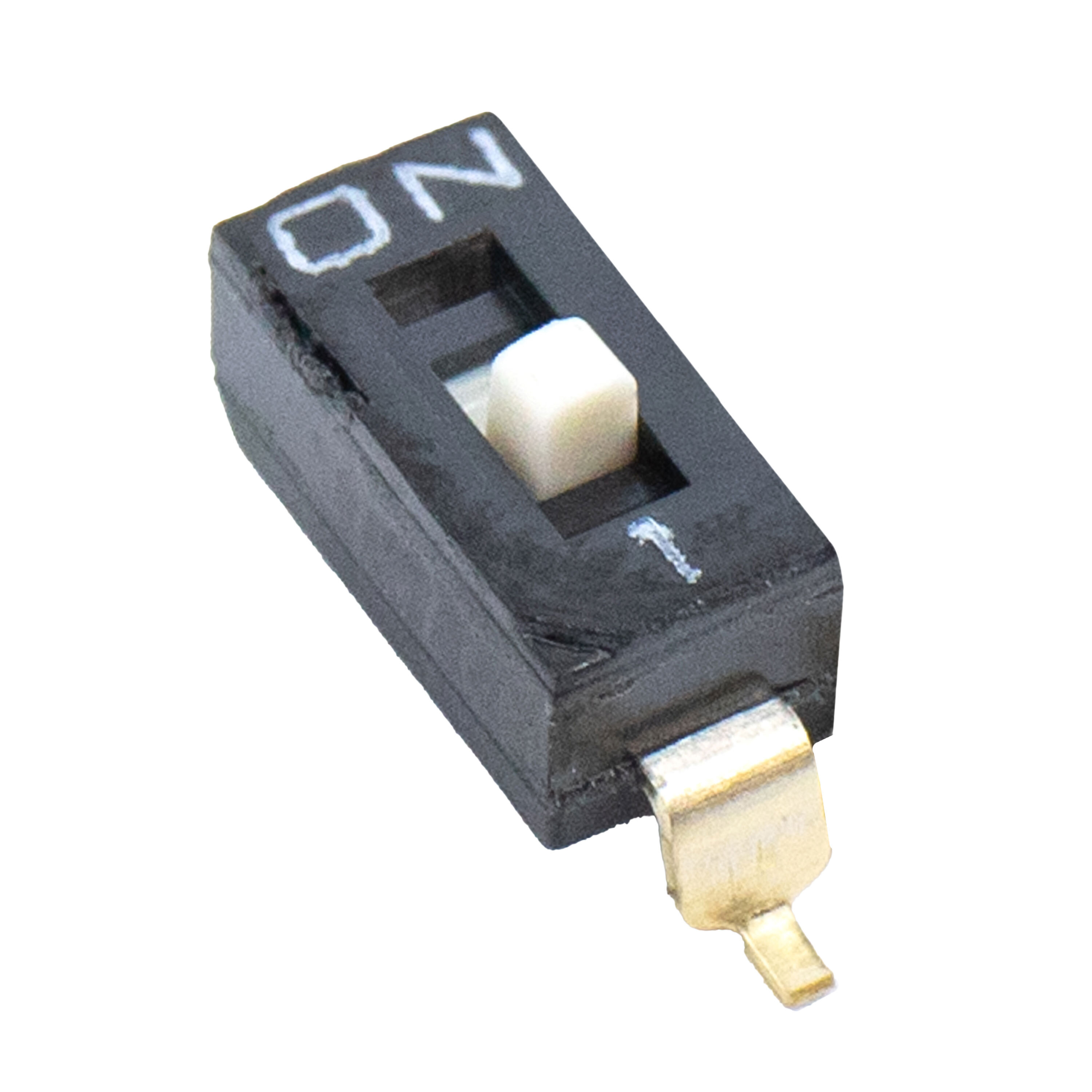

KAE01LGGR E-Switch – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

KAE01LGGR

Part No KAE01LGGR
Manufacturer E-SWITCH
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 0.025A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category SwitchesDIP Switches
Manufacturer E-Switch
Series KAE
Part Status Active
Circuit SPST
Number of Positions 1
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper
Contact Finish Gold
Height Above Board 0.176" (4.47mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Operating Temperature -20°C ~ 85°C
Length 0.141" (3.58mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Ultra Librarian 3D Model Ultra Librarian KAE01LGGR CAD Model
