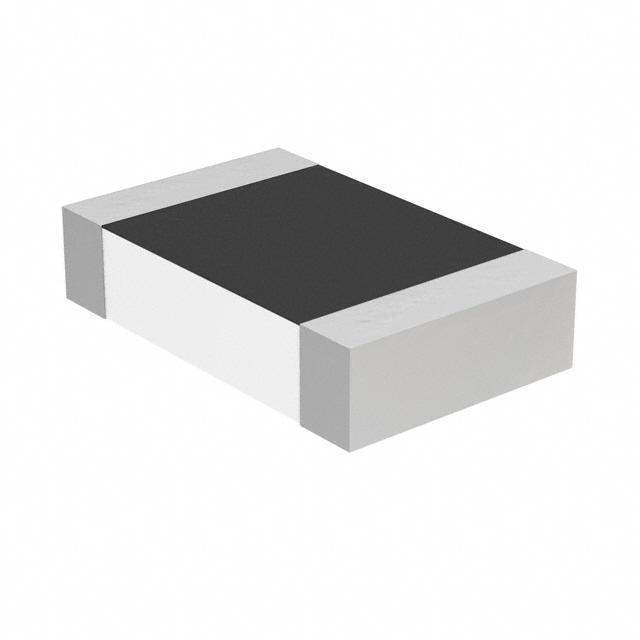

Same model may have multiple batches, images only for reference.
PTS0805M1B100RP100 Vishay Beyschlag/Draloric/BC Components
Same model may have multiple batches, images only for reference.

PTS0805M1B100RP100

Part No PTS0805M1B100RP100
Manufacturers Draloric , Vishay
Catalog Temperature Sensors - RTD (Resistance Temperature Detector)
Description SENSOR RTD 100OHM 0805
Datasheet
PTS0805M1B100RP100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201110-PTS0805M1B100RP100
Manufacturer Vishay Beyschlag/Draloric/BC Components
Category Sensors, Transducers -Temperature Sensors -RTD (Resistance Temperature Detector)
Series Automotive, AEC-Q200, PTS
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Resistance @ 0°C 100 Ohms
Resistance Tolerance ±0.3K
RTD Material Platinum (Pt)
Operating Temperature -55°C ~ 175°C
Termination SMD (SMT) Tabs
Ultra Librarian 3D Model Ultra Librarian PTS0805M1B100RP100 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components RTD Temperature Sensor is a high-quality sensor designed for accurate temperature measurement by Vishay Beyschlag/Draloric/BC Components.

  • Series: Automotive, AEC-Q200, PTS
  • Mounting: SMD (SMT) tabs
  • Resistance Tolerance: ±0.3K
  • Operating Temperature: -55°C to 175°C
  • Resistance @ 0°C: 100 Ohms
  • RTD Material: Platinum (Pt)
  • Product Status: Active
  • Application: Temperature sensing
