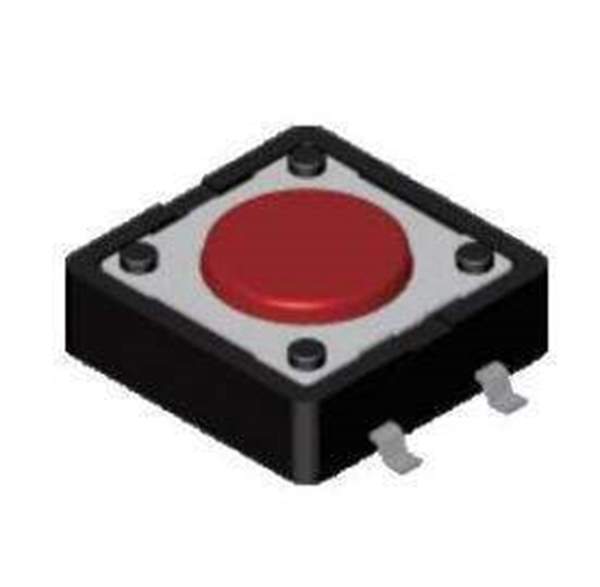

DTSM-24N-V-T/R Diptronics
Same model may have multiple batches, images only for reference.

DTSM-24N-V-T/R

Part No DTSM-24N-V-T/R
Manufacturer Diptronics
Catalog Tactile Switches
Description Tactile Switches Surface Mounting Type 12*12
Datasheet
DTSM-24N-V-T/R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diptronics
Category Tactile Switches
Illuminated Non-Illuminated
Mounting Style SMD/SMT
Mounting Direction Straight
Stem Height 3.8 mm
Actuator Rectangular
Switch Function OFF - (ON)
Operating Force 160 gf
Current Rating 50 mA
Voltage Rating DC 12 VDC
Ground Terminal No
Ultra Librarian 3D Model Ultra Librarian DTSM-24N-V-T/R CAD Model

Description

Features

  • Compact size 3.5x6 mm
  • Sharp click feeling
  • Choice of SMT terminal type
