Same model may have multiple batches, images only for reference.

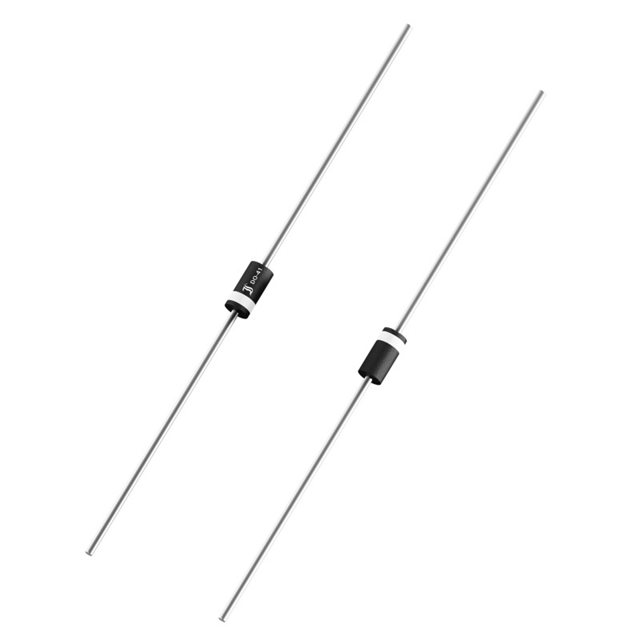

ZY20 Real Image
Same model may have multiple batches, images only for reference.

ZY20

Part No ZY20
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes - Zener - Single
Description ZENERDIODE,DO-41,20V,2W,5% / Zener Diode 20 V 2 W ±5% Through Hole DO-41/DO-204AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Mfr Diotec Semiconductor
Package Strip
Voltage - Zener (Nom) (Vz) 20 V
Tolerance ±5%
Power - Max 2 W
Impedance (Max) (Zzt) 6 Ohms
Current - Reverse Leakage @ Vr 1 µA @ 10 V
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case DO-204AC, DO-41, Axial
Supplier Device Package DO-41/DO-204AC
Other Names 2721-ZY20
Standard Package 30
Win Source Part Number 1106438-ZY20
Ultra Librarian 3D Model Ultra Librarian ZY20 CAD Model

Description

The Diotec Semiconductor ZY20 is a 2W zener diode that is designed for use in a wide range of applications.

  • Zener Voltage: 20V
  • Tolerance: ±5%
  • Maximum Power Dissipation: 2W
  • Current Leakage: 1μA @ 10V
  • Package: Strip
  • Standard Package: 30
