Same model may have multiple batches, images only for reference.

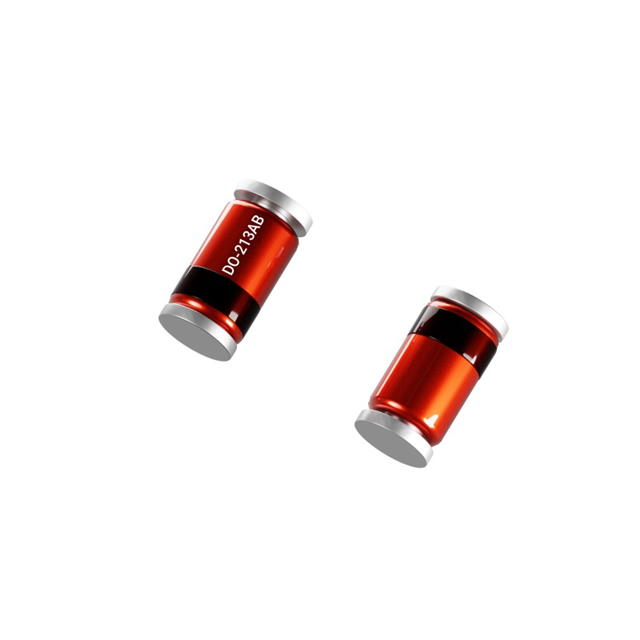

ZMY5.6G Real Image
Same model may have multiple batches, images only for reference.

ZMY5.6G

Part No ZMY5.6G
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes - Zener - Single
Description DIODE ZENER 5.6V 1W MELF / Zener Diode 5.6 V 1 W ±5% Surface Mount MELF DO-213AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Zener - Single
Manufacturer Diotec Semiconductor
Packaging Reel - TR
Voltage - Zener (Nom) (Vz) 5.6 V
Tolerance ±5%
Power - Max 1 W
Impedance (Max) (Zzt) 1 Ohms
Current - Reverse Leakage @ Vr 500 nA @ 2 V
Temperature Range - Operating -50°C ~ 175°C (TJ)
Mounting Surface Mount
Case / Package DO-213AB, MELF
Supplier Device Package MELF DO-213AB
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Other Part Number 2796-ZMY5.6GTR
Standard Package 5,000
Win Source Part Number 1324776-ZMY5.6G
Ultra Librarian 3D Model Ultra Librarian ZMY5.6G CAD Model

Description

The Diotec Semiconductor 1138401 is a surface mount zener diode from Diotec Semiconductor.

  • Maximum Power: 1 W
  • Voltage Tolerance: ±5%
  • Zener Voltage: 5.6 V
  • Maximum Impedance: 1 Ohms
  • Reverse Leakage Current: 500 nA @ 2 V
  • Package: MELF DO-213AB
  • Temperature Range: -50°C to 175°C
  • ROHS3 Compliant: true
  • Standard Package: 5,000
