Same model may have multiple batches, images only for reference.

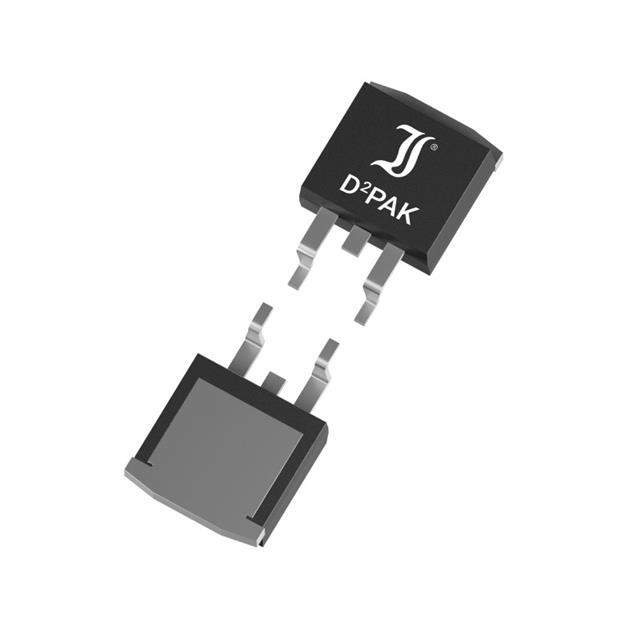

SK3050CD2 Real Image
Same model may have multiple batches, images only for reference.

SK3050CD2

Part No SK3050CD2
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Arrays
Description SCHOTTKY D2PAK 50V 30A  /  Diode Array 1 Pair Common Cathode Schottky 50 V 15A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Diotec Semiconductor
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 700 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 50 V
Operating Temperature - Junction -50°C ~ 150°C
Mounting SMD (SMT)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D2PAK)
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Other Names 2796-SK3050CD2
Standard Package 50
Win Source Part Number 983521-SK3050CD2
Ultra Librarian 3D Model Ultra Librarian SK3050CD2 CAD Model

Description

The SK3050CD2 is a high-quality diode rectifier array from Diotec Semiconductor.

  • Diode Type: fast recovery
  • Speed: less than 500ns
  • Current: more than 200mA (Io)
  • Maximum Voltage: 50V DC reverse
  • Forward Voltage: 700mV @ 15A
  • Current Reverse Leakage: 500 µA @ 50V
  • Diode Configuration: 1 pair common cathode
  • Average Rectified Current: 15A
