Same model may have multiple batches, images only for reference.

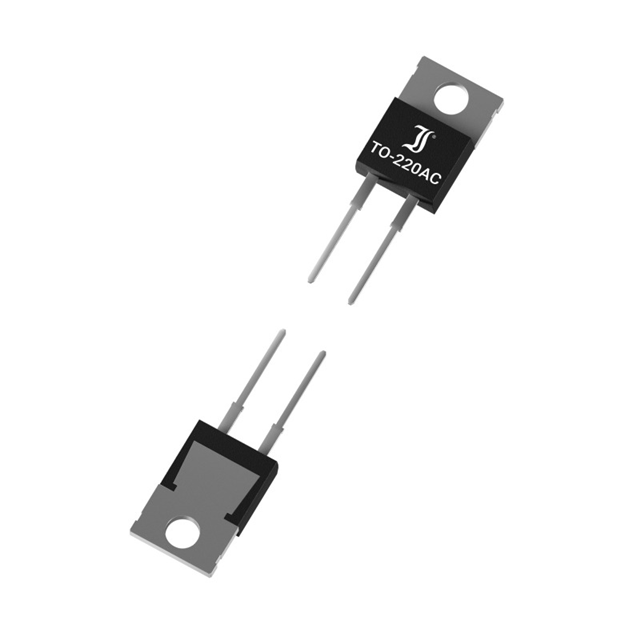

SBT10100 Real Image
Same model may have multiple batches, images only for reference.

SBT10100

Part No SBT10100
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description SchottkyD, 100V, 10A  /  Diode Schottky 100 V 10A Through Hole TO-220AC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Diotec Semiconductor
Package Tube
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 10 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 100 V
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction -50°C ~ 150°C
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-SBT10100
Standard Package 5
Win Source Part Number 1174675-SBT10100
Ultra Librarian 3D Model Ultra Librarian SBT10100 CAD Model

Description

The Diotec Semiconductor electronic component with Win Source Part Number 1174675-SBT10100 is a Schottky diode with a maximum voltage of 100V.

  • Maximum Voltage: 100V
  • Average Rectified Current: 10A
  • Maximum Forward Voltage: 850mV @ 10A
  • Operating Temperature Range: -50°C to 150°C
  • Package: TO-220-2
  • Supplier Device Package: TO-220AC
