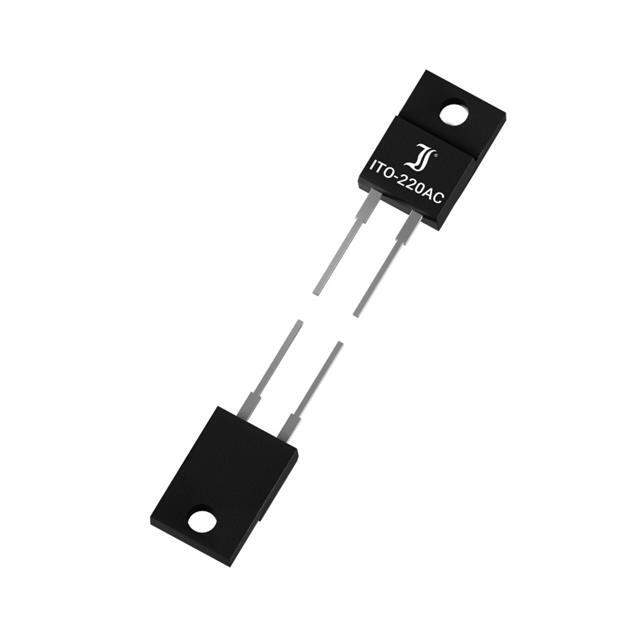

SBJ1845 Real Image
Same model may have multiple batches, images only for reference.

SBJ1845

Part No SBJ1845
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description SchottkyD, 45V, 18A  /  Diode Schottky 45 V 18A Through Hole TO-220AB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Diotec Semiconductor
Package Tube
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 18A
Voltage - Forward (Vf) (Max) @ If 580 mV @ 18 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 45 V
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
Operating Temperature - Junction -50°C ~ 150°C
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-SBJ1845
Standard Package 5
Win Source Part Number 1170396-SBJ1845
Ultra Librarian 3D Model Ultra Librarian SBJ1845 CAD Model

Description

The Schottky diode 1170396-SBJ1845 is a fast recovery diode with a maximum reverse voltage of 45V and a forward current of 18A.

  • Maximum Reverse Voltage: 45V
  • Forward Current: 18A
  • Forward Voltage Drop: 580mV @ 18A
  • Reverse Leakage Current: 500 µA @ 45V
  • Application: rectification
  • Mounting: through hole
  • Package Type: TO-220-3
  • Device Package: TO-220AB
  • Operating Temperature: -50°C to 150°C
  • Standard Package: 5
  • Manufacturer: Diotec Semiconductor
