Same model may have multiple batches, images only for reference.

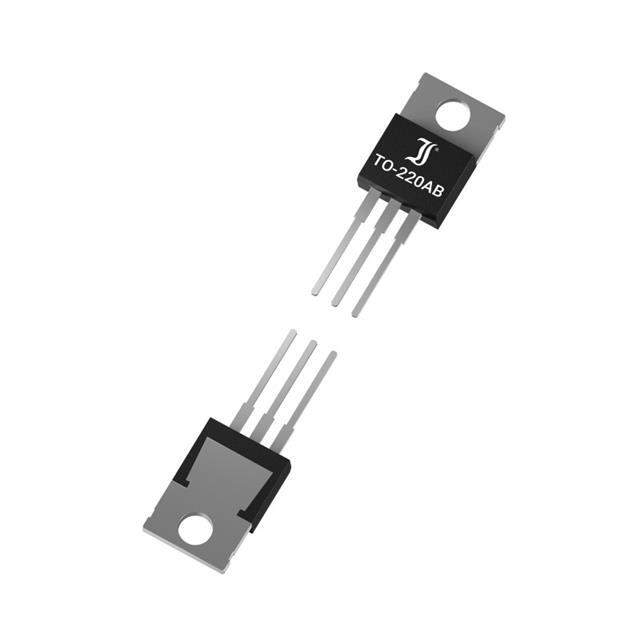

SBCT1020 Real Image
Same model may have multiple batches, images only for reference.

SBCT1020

Part No SBCT1020
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Arrays
Description SchottkyD, 20V, 10A / Diode Array 1 Pair Common Cathode Schottky 20 V 5A Through Hole TO-220-3
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Diotec Semiconductor
Package Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) (per Diode) 5A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 300 µA @ 20 V
Operating Temperature - Junction -50°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-220-3
Supplier Device Package TO-220AB
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-SBCT1020
Standard Package 5
Win Source Part Number 1091359-SBCT1020
Ultra Librarian 3D Model Ultra Librarian SBCT1020 CAD Model

Description

The Diotec Semiconductor 1091359-SBCT1020 is a fast recovery Schottky diode array from Diotec Semiconductor.

  • Application: Rectifier circuits
  • Voltage Rating (DC Reverse): 20 V
  • Forward Voltage @ 5 A: 550 mV
  • Diode Configuration: 1 pair common cathode
  • Current Rating (Average Rectified Io): 5 A
  • Operating Temperature Range: -50°C to 150°C
  • Package Type: Through hole
  • Package/Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • RoHS Compliant: No
