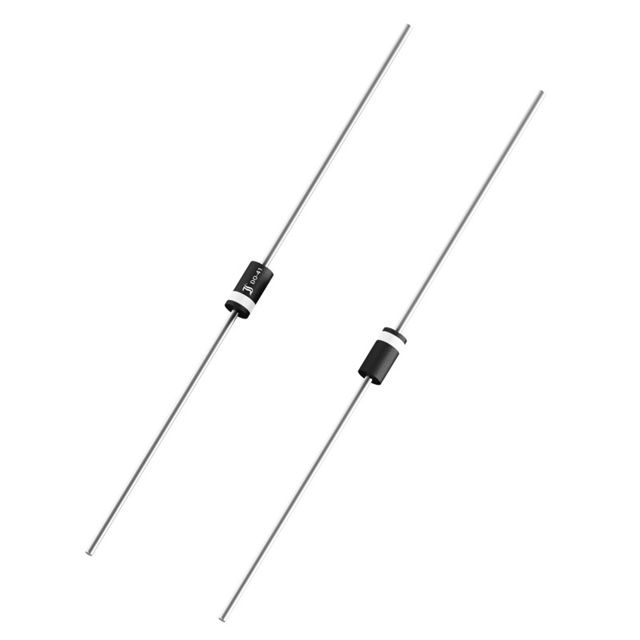

SB1100S Real Image
Same model may have multiple batches, images only for reference.

SB1100S

Part No SB1100S
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description SchottkyD, 100V, 1A  /  Diode Schottky 100 V 1A Through Hole DO-41/DO-204AC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Diotec Semiconductor
Package Tape & Reel (TR)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 100 V
Mounting Type Through Hole
Package / Case DO-204AC, DO-41, Axial
Supplier Device Package DO-41/DO-204AC
Operating Temperature - Junction -50°C ~ 150°C
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-SB1100STR
Standard Package 30
Win Source Part Number 1091371-SB1100S
Ultra Librarian 3D Model Ultra Librarian SB1100S CAD Model

Description

The Diotec Semiconductor SB1100S is a fast recovery Schottky diode with a voltage DC reverse (Vr) (Max) of 100 V and current - average rectified (Io) of 1A.

  • Voltage DC Reverse (Vr) (Max): 100 V
  • Current - Average Rectified (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 850 mV @ 1 A
  • Current - Reverse Leakage @ Vr: 1 mA @ 100 V
  • Capacitance @ Vr, F: -
  • Operating Temperature: -50°C ~ 150°C
  • Mounting Type: Through Hole
  • Package / Case: DO-204AC, DO-41, Axial
  • REACH Status: Compliant
  • HTSUS: 8541.10.0000
