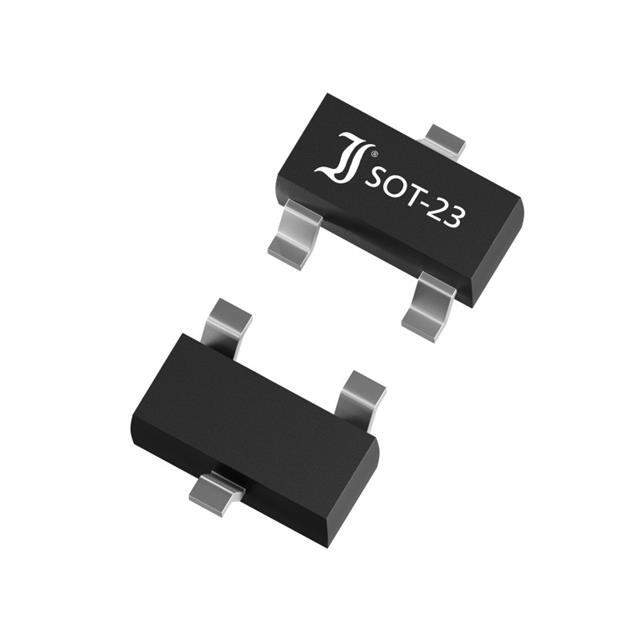

Same model may have multiple batches, images only for reference.

NUP3105L

Name: NUP3105L
Brand: DIOTEC Electronics Corporation
SKU: 1349124
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NUP3105L
Manufacturer	DIOTEC Electronics Corporation
Catalog	TVS - Diodes
Description	ESD DIODE, SOT-23, 0.1UA, 150 / 70V Clamp 7.2A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Diotec Semiconductor
Package	Tape & Reel
Type	Zener
Bidirectional Channels	2
Voltage - Reverse Standoff (Typ)	32V
Voltage - Breakdown (Min)	35.6V
Voltage - Clamping (Max) @ Ipp	70V
Power - Peak Pulse	350W
Power Line Protection	No
Applications	Automotive
Capacitance @ Frequency	30pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3 (TO-236)
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
HTSUS	8541.10.0000
Win Source Part Number	1349124-NUP3105L
Ultra Librarian 3D Model	Ultra Librarian NUP3105L CAD Model

Alternative Products

Description

The NUP3105L is a bidirectional TVS diode from Diotec Semiconductor.

Reverse Standoff Voltage: 32V
Breakdown Voltage: 35.6V
Power Rating: 350W
Capacitance: 30pF @ 1MHz
Compliance: RoHS Compliant
Mounting: Surface Mount
Application: Automotive
Channels: Two, Bidirectional
REACH Status: Unaffected
HTSUS Code: 8541.10.0000
