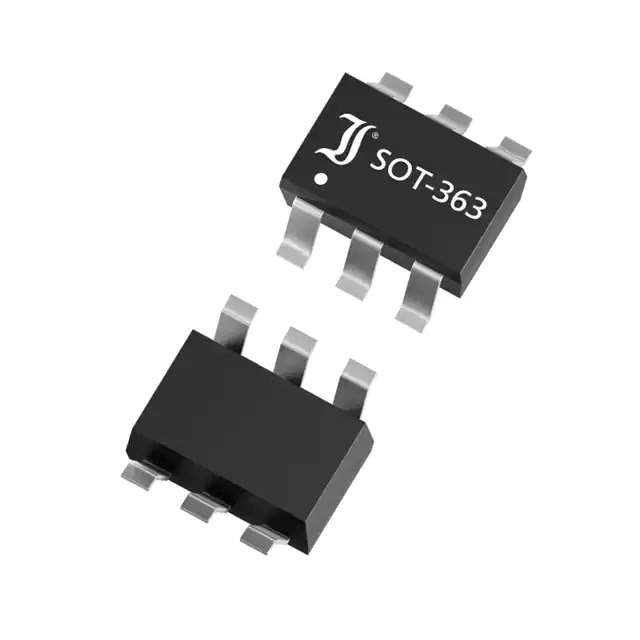

BAV70DW Real Image
Same model may have multiple batches, images only for reference.

BAV70DW

Part No BAV70DW
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Arrays
Description DIODE SOT-363 100V 0.2A 4NS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Diode Configuration 2 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 150mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 80 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Surface Mount
Package / Case 6-VSSOP, SC-88, SOT-363
Supplier Device Package SOT-363
Base Product Number BAV70
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
HTSUS 8541.10.0000
Win Source Part Number 569014-BAV70DW
Ultra Librarian 3D Model Ultra Librarian BAV70DW CAD Model

Description

The 569014-BAV70DW is a diode array consisting of two pairs of common cathode diodes.

  • Reverse Voltage (Vr): 100V (maximum)
  • Average Rectified Current (Io): 150mA
  • Forward Voltage (Vf): 1.25V @ 150mA
  • Reverse Recovery Time (trr): 4ns
  • Reverse Leakage Current: 500nA @ 80V
  • Technology: Standard
  • Operating Temperature: -55°C to 150°C
  • Package: 6-VSSOP, SC-88, SOT-363
  • Package Quantity: Tape and reel package of 3,000 pcs
  • Applications: Small signal applications requiring high-speed switching and low leakage current
