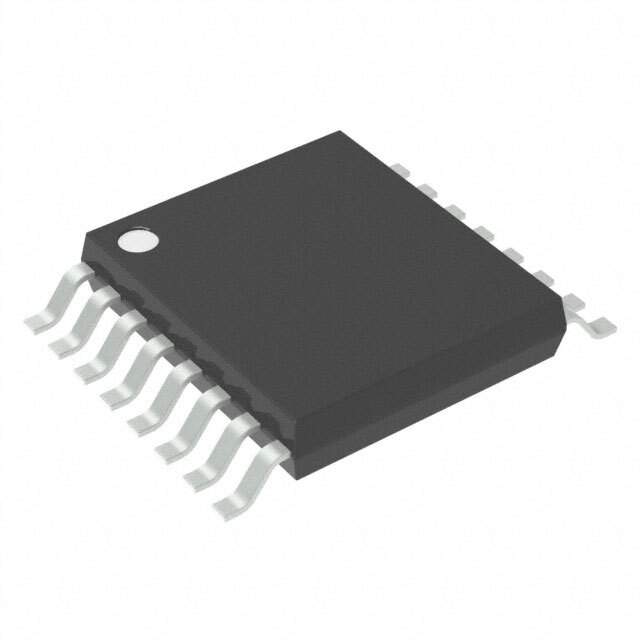

The ZXLD1371QESTTC is a high-performance LED driver IC from Diodes Incorporated, designed to deliver precision current regulation for high-brightness LEDs. This advanced driver IC is tailored for a variety of lighting applications, including architectural lighting, display backlighting, general illumination, and automotive lighting systems.

Key Features

• Adjustable Output Current: The device allows for precise control over the output current, ensuring consistent brightness and color for LEDs.
• High Efficiency: With a high level of efficiency, this driver IC ensures minimal power loss during operation, making it ideal for energy-sensitive applications.
• Wide Input Voltage Range: The ZXLD1371QESTTC can operate across a broad input voltage range, accommodating various power supply conditions.
• Thermal Protection: The built-in thermal shutdown feature prevents damage to the IC and the LEDs in case of overheating, enhancing the product's reliability and lifespan.
• Low Profile Package: Housed in a compact thermally enhanced TSOT25 package, the driver IC is suitable for space-constrained applications.

Technical Specifications

• Output Current: Adjustable up to 1A.
• Input Voltage: 6V to 60V.
• Switching Frequency: Up to 1MHz.
• Operating Temperature: -40°C to +125°C.

The ZXLD1371QESTTC leverages a simple external feedback control system to provide constant current output with high accuracy. Its ability to drive multiple LEDs in series ensures uniform luminance and simplifies the design of LED arrays. The device's programmable soft-start function allows for a gradual increase in current, which can extend the life of the LEDs and reduce inrush current, contributing to the stability of the power supply.

Diodes Incorporated's commitment to quality and performance is evident in the ZXLD1371QESTTC LED driver IC, making it a reliable choice for designers seeking to optimize their LED lighting solutions. Its robust feature set, coupled with the company's support and resources, ensures a seamless integration into a wide array of lighting applications.
