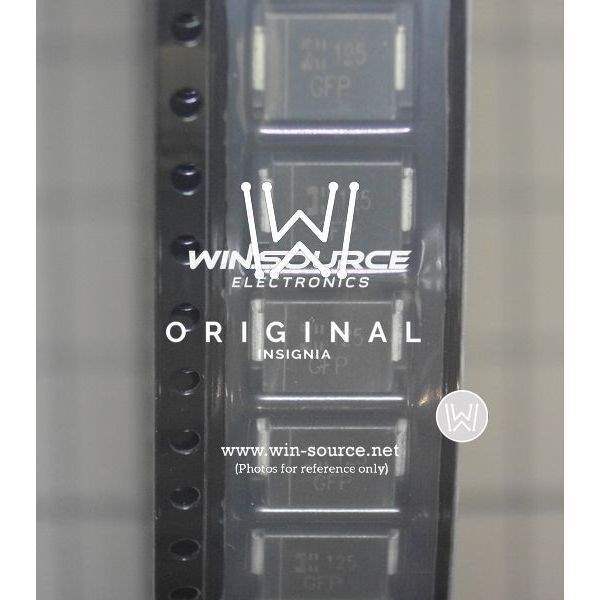

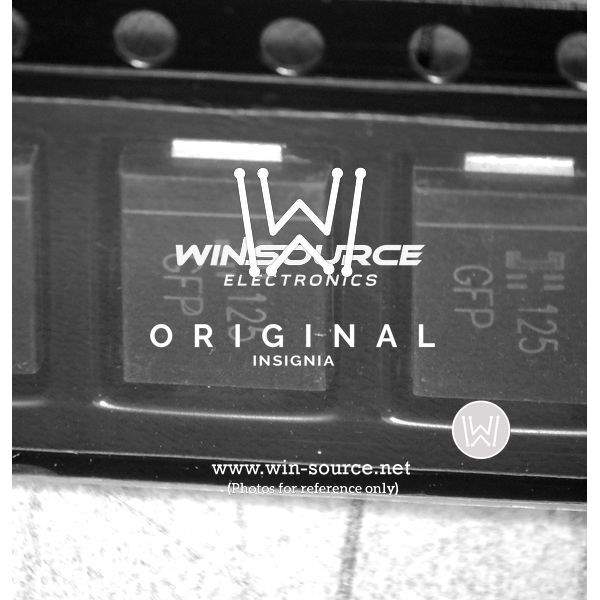

SMCJ36A-13-F Transient Voltage Suppressor (TVS) Diode by Diodes Incorporated

The SMCJ36A-13-F from Diodes Incorporated is a robust transient voltage suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by system inductive load switching and lightning. This TVS diode is specifically engineered to shield voltage-sensitive components which can be damaged by transient voltage events. It is a preferred choice for a wide range of applications, including industrial systems, consumer electronics, automotive, and telecommunication infrastructure.

Key Features

• Transient Protection: The SMCJ36A-13-F provides excellent clamping capability, with a peak pulse power dissipation of 1500 Watts at 10/1000μs waveform, ensuring reliable protection against high energy transients.
• Stand-Off Voltage: It has a stand-off voltage rating of 36 Volts, making it suitable for a variety of circuits with different operating voltages.
• Uni-directional Device: As a uni-directional TVS, this component is designed to protect against voltage spikes in one polarity, typically where the threat is known to have a specific directionality.
• Low Incremental Surge Resistance: The surge resistance is minimized, providing better performance during surge events.
• Surface Mount Package: Packaged in a low-profile SMC (DO-214AB) package, the SMCJ36A-13-F is ideal for automated assembly processes and saves board space.
• Compliance: It meets the MSL level 1 standard, per J-STD-020, and is compliant with RoHS and REACH requirements, ensuring environmental safety and sustainability.
• Temperature Range: The operating junction temperature range is from -55°C to +150°C, accommodating a broad range of environmental conditions.

Applications

The SMCJ36A-13-F is versatile and can be used in various applications where transient voltage protection is critical. Some common applications include:

• Power supply lines
• Automotive systems
• Industrial controls
• Consumer electronics
• Telecommunication systems

With its ability to safeguard electronics from voltage spikes and its compatibility with high-volume manufacturing, the SMCJ36A-13-F is an excellent choice for designers seeking to enhance the reliability and longevity of their electronic products.
