Product Overview: SDM20U40Q-7 - Schottky Barrier Diode

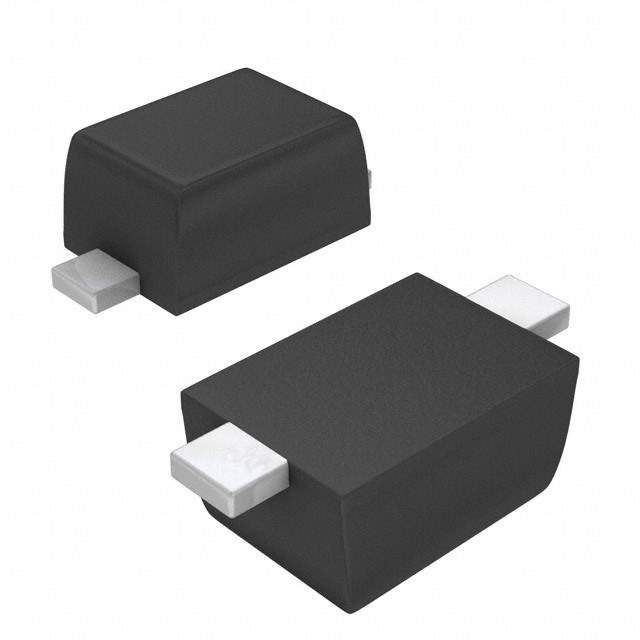

The SDM20U40Q-7 from Diodes Incorporated is a high-performance Schottky barrier diode designed for applications requiring low forward voltage drop and high surge current capability. This diode is housed in a compact SOD-123F package, making it ideal for space-constrained applications while offering robust thermal performance and reliability.

Key Features

• Low Forward Voltage: The SDM20U40Q-7 provides a low forward voltage drop, which enhances system efficiency, particularly in low voltage applications.
• High Surge Current Capability: Its design allows for a high surge current capability, making it suitable for applications that experience transient overcurrent conditions.
• Power Dissipation: With a power dissipation of 1W, this diode can handle a significant amount of power for its size, contributing to overall circuit robustness.
• Lead-Free and RoHS Compliant: This diode is environmentally friendly, complying with current RoHS directives, and is free from lead and other hazardous substances.

Electrical Characteristics

• Forward Continuous Current: It supports a forward continuous current of 2A, providing ample current for a wide range of applications.
• Reverse Voltage: The maximum reverse voltage is rated at 40V, which makes it suitable for circuits operating at these and lower voltages.
• Operating Junction Temperature: The device can operate within a junction temperature range of -55°C to +150°C, ensuring reliability across various environmental conditions.

Applications

The SDM20U40Q-7 is versatile and can be used in various applications, including:

• DC-DC converters
• Power supply circuits
• Reverse polarity protection
• Load switching
• Portable devices and battery-powered applications

With its combination of low forward voltage, high surge current capability, and compact form factor, the SDM20U40Q-7 is an excellent choice for designers looking to optimize power efficiency and reliability in their electronic designs.
