The SBRT2U45LP-7 is a state-of-the-art rectifier diode from Diodes Incorporated, designed to offer superior performance in a variety of applications. This component is part of the company's extensive range of diodes, which are known for their reliability and efficiency. The SBRT2U45LP-7 is particularly well-suited for high-frequency environments and power-sensitive applications due to its low power loss and high efficiency.

Key Features

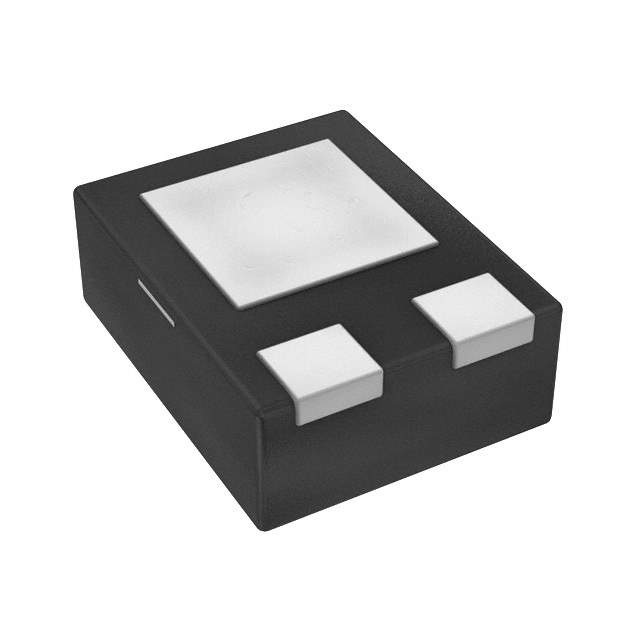

• Low Profile Package: The device comes in a low profile PowerDI™5 package, ensuring a compact footprint and minimal space consumption on the PCB.
• Super Barrier Technology: Incorporating Diodes Incorporated's advanced Super Barrier Rectifier (SBR®) technology, the SBRT2U45LP-7 offers a lower forward voltage drop compared to conventional Schottky diodes.
• High Surge Capability: With its robust design, the diode is capable of withstanding high surge currents, making it ideal for applications that require a high level of reliability and resilience.
• Low Thermal Resistance: The component's excellent thermal characteristics enable efficient heat dissipation, contributing to its overall performance and longevity.

Applications

The SBRT2U45LP-7 is versatile and can be used in various applications, including:

• Switching power supplies
• Freewheeling diodes
• DC/DC converters
• OR-ing diode
• Reverse battery protection

Technical Specifications

• Voltage Rating: The diode has a maximum repetitive reverse voltage (VRRM) of 45V.
• Current Rating: It offers a forward continuous current (IF) of 2A.
• Low Forward Voltage Drop: The forward voltage drop (VF) is minimized to enhance system efficiency.
• Operating Temperature Range: The SBRT2U45LP-7 is designed to operate within a temperature range of -55°C to +150°C, accommodating a wide range of environmental conditions.

Environmental and Quality Standards

Diodes Incorporated is committed to environmental sustainability and quality. The SBRT2U45LP-7 is produced with adherence to rigorous standards, ensuring both high performance and compliance with environmental regulations.
