The SBR40U120CTE is a state-of-the-art power rectifier from Diodes Incorporated, designed to offer superior performance in a wide range of applications. This component is part of the Super Barrier Rectifier (SBR) family, known for their high efficiency and reliability. The SBR40U120CTE is particularly suitable for high-frequency power supplies, lighting applications, and as a freewheeling diode in converters and motor control circuits.

Key Features

• High Surge Capability: The SBR40U120CTE is capable of handling high surge currents, making it robust against sudden spikes and ensuring reliability in harsh conditions.
• Low Forward Voltage Drop: With a low forward voltage drop, this device ensures reduced power loss and improved efficiency, which is crucial for power-sensitive applications.
• High Temperature Operation: Engineered to operate effectively at high temperatures, the SBR40U120CTE maintains performance stability even under thermal stress.
• Pb-Free and RoHS Compliant: This product adheres to environmental standards, being lead-free and compliant with Restriction of Hazardous Substances (RoHS) directives.

Electrical Characteristics

• Peak Repetitive Reverse Voltage (Vrrm): 120V
• Average Rectified Output Current (Io): 40A
• Non-Repetitive Peak Surge Current (Ism): 300A
• Forward Voltage Drop (Vf): 0.95V at 20A
• Operating Junction Temperature Range (Tj): -55°C to +150°C

Applications

The SBR40U120CTE is versatile and can be used in various applications where efficiency and thermal performance are critical. It is ideal for:

• Power Factor Correction (PFC) circuits
• Switch Mode Power Supplies (SMPS)
• DC-DC converters
• LED Lighting
• Automotive applications

Package and Quality

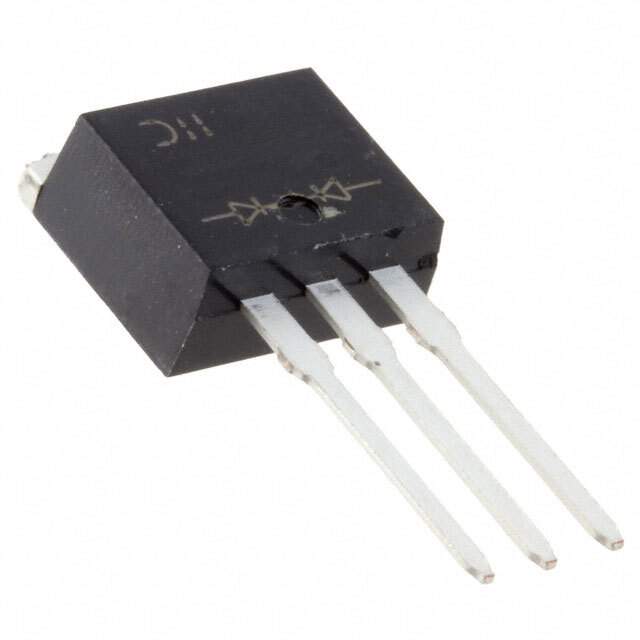

The SBR40U120CTE comes in a TO-220AB package, which is widely used and recognized for its robustness and ease of mounting on a PCB. Quality is assured through Diodes Incorporated's commitment to high manufacturing standards and rigorous testing protocols, ensuring that each component meets the highest quality and performance benchmarks.
