The SBR40U100CTE is a high-performance Schottky barrier rectifier from Diodes Incorporated, designed to meet the rigorous demands of today's power regulation systems. This device is part of Diodes Incorporated's Super Barrier Rectifier (SBR) series, which are known for their superior efficiency, low power loss, and high surge current capability compared to traditional Schottky diodes.

Key Features

• High Forward Surge Capability: This rectifier is capable of withstanding high surge currents, making it ideal for applications that experience frequent power surges or spikes.
• Low Thermal Resistance: The SBR40U100CTE has a low thermal resistance that allows for better heat dissipation, contributing to its reliability and longevity.
• High Forward Current: With a forward current of up to 40A, this device can handle high current applications with ease.
• Low Forward Voltage Drop: The low forward voltage drop ensures high efficiency, which is particularly beneficial in applications where power conservation is critical.
• Robust Reverse Avalanche Capability: It offers a robust reverse avalanche capability, providing additional protection against reverse voltage transients.

Applications

The SBR40U100CTE is versatile and can be used in a variety of applications, including:

• Power supply units
• DC-DC converters
• Battery charging systems
• Automotive power systems
• Industrial power systems

Electrical Characteristics

With a repetitive peak reverse voltage (V<sub>RRM) of 100V and a maximum average forward rectified current (I<sub>AV) of 40A at T<sub>C = 125°C, the SBR40U100CTE is suitable for high voltage and high current applications. It also features a maximum operating junction temperature of 150°C, ensuring stable performance under extreme conditions.

Package and Quality

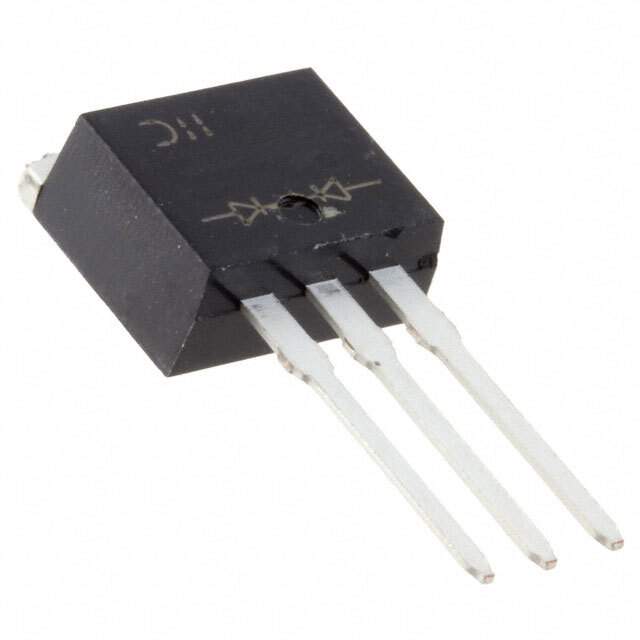

The SBR40U100CTE comes in a TO-220AB package, which is widely used and recognized for its ease of installation and robustness. Diodes Incorporated's commitment to quality is evident in this product's compliance with RoHS and Green standards, ensuring both environmental friendliness and adherence to the most stringent industry regulations.
