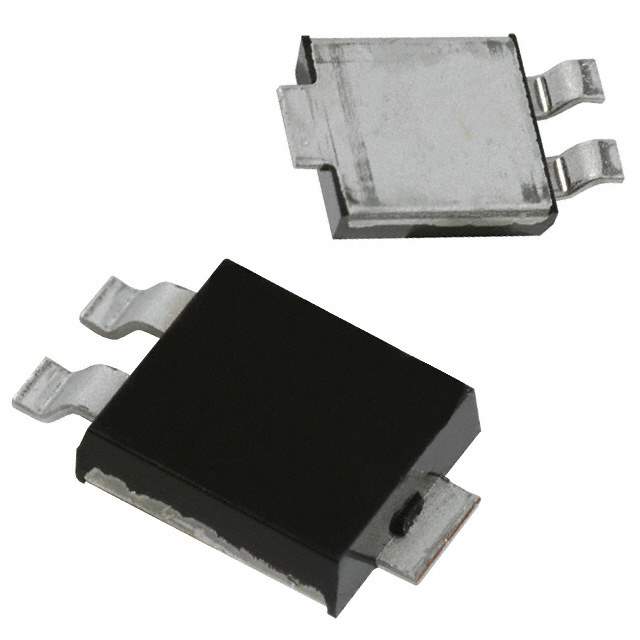

Product Overview: SBM1040DICT - Schottky Barrier Rectifier

The SBM1040DICT is a high-performance Schottky barrier rectifier designed by Diodes Incorporated, a leading manufacturer in the semiconductor market. This rectifier is engineered to offer efficient low voltage drop and high current capability, making it an ideal choice for a wide range of applications. Its robust design ensures reliability and longevity, even under challenging conditions.

Key Features

• High Current Operation: With a forward current rating of 10A, the SBM1040DICT can handle high levels of current, making it suitable for power supply applications and high current circuits.
• Low Forward Voltage Drop: The device features a low forward voltage drop, which enhances system efficiency by minimizing power loss during operation.
• High Surge Capability: It offers excellent surge capability, which ensures the device can withstand transient over-voltage conditions without failing.
• Thermal Performance: The SBM1040DICT has an operating junction temperature range of -55°C to +150°C, providing reliable performance across a wide temperature range.
• Package: It is available in a DICT package that is designed for optimal heat dissipation and space-saving on the PCB.

Applications

The SBM1040DICT is versatile and can be used in numerous applications, including:

• Power supply units
• DC-DC converters
• Free-wheeling diodes in converters and motor control circuits
• Polarity protection applications
• Automotive applications where high efficiency is required

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products, and the SBM1040DICT is no exception. It is manufactured to meet stringent quality standards, ensuring reliable performance and durability. With its combination of efficiency, thermal stability, and high current capability, the SBM1040DICT stands out as a superior choice for designers looking for a Schottky barrier rectifier that can meet the demands of modern electronic applications.
