The PI5C3257ZHDEX is a high-performance, 5V, 4-channel, 2:1 multiplexer/demultiplexer bus switch from Diodes Incorporated. This advanced switch is designed to provide high-speed switching with low on-resistance, making it an ideal solution for applications that require efficient data routing with minimal signal distortion.

Key Features

• Low On-Resistance: The PI5C3257ZHDEX boasts an exceptionally low on-resistance, typically around 5 ohms, ensuring minimal signal loss and distortion during the switching process.
• High Bandwidth: With a bandwidth greater than 500 MHz, this switch can handle high-speed signals with ease, making it suitable for the latest high-performance applications.
• 5V Operation: Optimized for 5V supply voltage, the PI5C3257ZHDEX is compatible with a wide range of digital systems.
• Low Power Consumption: The device is designed for low power consumption, which helps to reduce the overall power requirements of the system in which it is used.
• Bi-Directional Switch: The switch can be used in either direction, providing flexibility in signal routing for multiplexing or demultiplexing applications.
• Wide Operating Temperature Range: This switch operates over an industrial temperature range of -40°C to +85°C, making it suitable for use in harsh environments.

Applications

The PI5C3257ZHDEX is versatile and can be used in a variety of applications, including:

• Communication systems
• Networking equipment
• Data acquisition systems
• Computer peripherals
• Audio and video signal routing

Quality and Reliability

Diodes Incorporated is known for their commitment to quality and reliability, and the PI5C3257ZHDEX is no exception. It is manufactured to meet the stringent requirements of the industry, ensuring consistent performance and durability for the end user.

Product Availability

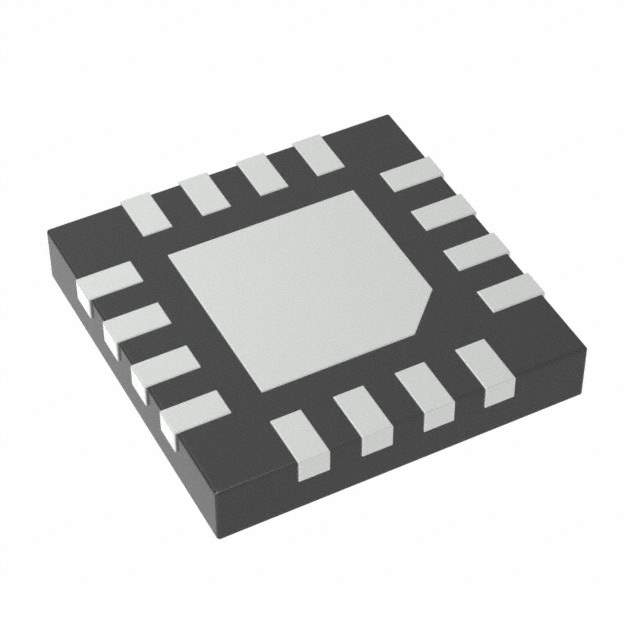

The PI5C3257ZHDEX is available in a compact, surface-mount package, making it suitable for use in space-constrained applications. It is also RoHS compliant, adhering to environmental standards and regulations.
