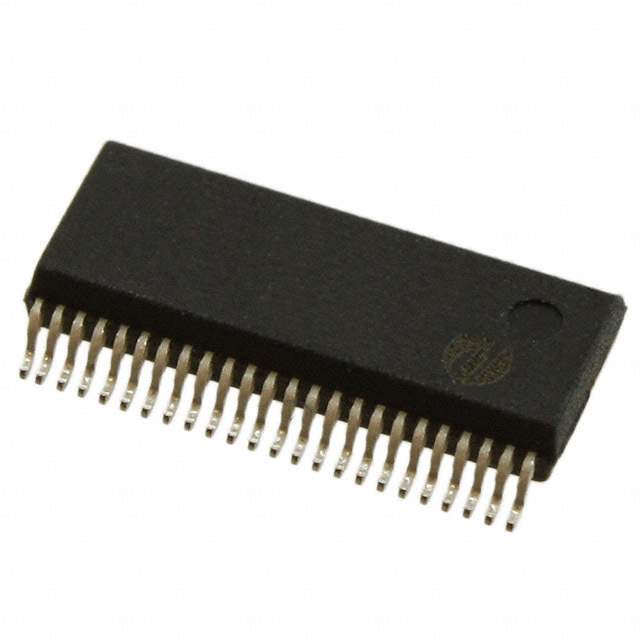

Overview of the PI5C16862CBE from Diodes Incorporated

The PI5C16862CBE is a high-performance, 10-bit, 2-port bus switch from Diodes Incorporated, designed with advanced CMOS technology to provide high-speed, low-power operation. This integrated circuit is a perfect solution for applications requiring efficient and reliable switching between data lines or signal paths. With its quick switch times and minimal propagation delay, it is especially suitable for systems that demand high bandwidth and data throughput.

Key Features

• High-Speed Switching: The device offers a near-zero propagation delay, making it ideal for high-speed data switching applications.
• Low Power Consumption: It operates with very low quiescent power, which helps in reducing the overall power consumption of the system it is integrated into.
• 5Ω Switch Connection between Two Ports: The low on-resistance of the switch ensures minimal signal distortion and maintains signal integrity.
• Minimal Capacitance: The switch has been designed to have a low capacitance, which reduces the loading effect on the data lines.
• Wide Operating Voltage Range: The PI5C16862CBE operates over a wide voltage range of 4.5V to 5.5V, which allows for flexible integration into different system designs.
• Industrial Operating Temperature: The device is operational over an industrial temperature range, making it reliable in various environmental conditions.
• Enhanced Signal Integrity: Due to its design, the switch maintains excellent signal integrity, which is crucial for maintaining the quality of high-speed data transmission.

Applications

The PI5C16862CBE is versatile and can be used in a variety of applications, including:

• Switching on bus lines of high-speed data paths
• Server and networking infrastructure
• Signal gateway applications
• Peripheral sharing
• Data communication systems

Reliability and Quality

Diodes Incorporated is known for its commitment to quality, and the PI5C16862CBE is no exception. The product is manufactured with a focus on reliability and is subjected to rigorous testing to ensure it meets industry standards. This makes the PI5C16862CBE an excellent choice for designers looking for a dependable bus switch to incorporate into their systems.
