The PI5A3157BC6EX from Diodes Incorporated is a high-performance, single-pole double-throw (SPDT) analog switch designed to deliver a combination of fast switching speeds, low on-resistance, and minimal charge injection. This makes it an ideal choice for a wide range of applications, including signal routing, data acquisition systems, and battery-powered devices.

Key Features

• Low On-Resistance: The device features a low on-resistance (R<sub>ON) which typically stands at 0.5Ω. This characteristic ensures minimal voltage drop and power loss across the switch, enhancing efficiency in signal routing applications.
• High-Speed Switching: With fast switching times (t<sub>ON and t<sub>OFF), the PI5A3157BC6EX can handle high-frequency signals, making it suitable for audio, video, and other high-speed data applications.
• Single Supply Operation: It operates with a single power supply ranging from 2.3V to 5.5V, accommodating a variety of logic-level requirements and making it compatible with a broad spectrum of devices and systems.
• Low Power Consumption: The low power consumption of the PI5A3157BC6EX is crucial for battery-operated devices, ensuring longer battery life and reduced energy costs.
• Minimal Charge Injection: The switch exhibits minimal charge injection, which helps to preserve signal integrity, especially important in precision analog applications.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is built into the device, safeguarding it against the damaging effects of static electricity.

Applications

• Audio and Video Signal Routing
• Communication Systems
• Data Acquisition Systems
• Portable Battery-Powered Devices
• Test Equipment
• Medical Equipment

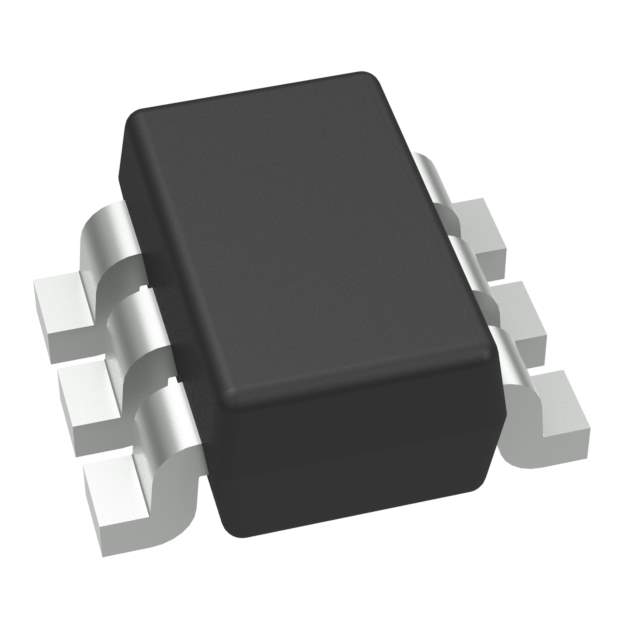

The PI5A3157BC6EX is offered in a compact 6-pin SOT-23 package, a feature that makes it particularly suitable for space-constrained applications. With its robust design and versatile performance characteristics, the PI5A3157BC6EX is an excellent choice for designers looking to optimize their analog signal switching with a reliable, high-quality component.
