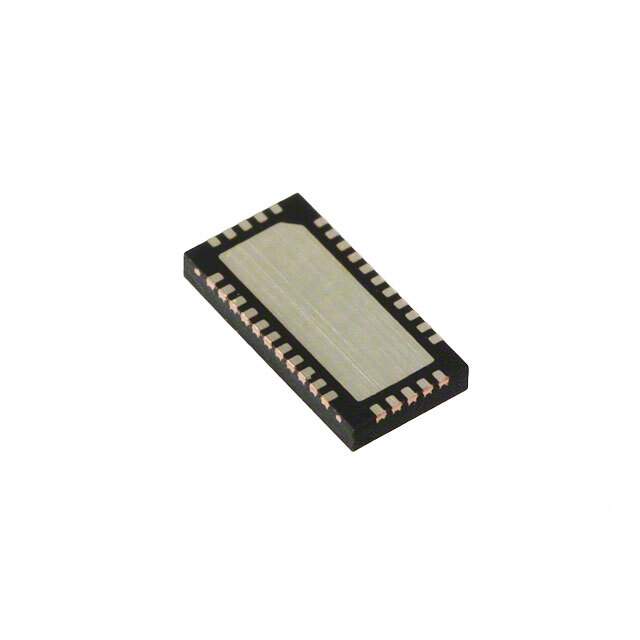

Introducing the PI3V713-AZLE from Diodes Incorporated

The PI3V713-AZLE is a high-performance, low-power, 3.3V, 2:1 multiplexer/demultiplexer (mux/demux) switch designed for HDMI/DVI signal switching, brought to you by the renowned semiconductor manufacturer, Diodes Incorporated. This cutting-edge device is ideal for applications where high data integrity and efficient power usage are paramount. The PI3V713-AZLE is engineered to meet the rigorous demands of high-definition multimedia interfaces, making it a perfect fit for consumer electronics, computing, and communication devices.

Key Features

• High Bandwidth: The PI3V713-AZLE supports high-speed data rates up to 3.4 Gbps per lane, accommodating the latest HDMI and DVI standards and ensuring smooth and clear transmission of high-definition content.
• Low Crosstalk: With its low crosstalk characteristics, the device minimizes signal interference, providing a reliable and stable connection for critical applications.
• Low On-Resistance: The low on-resistance (RON) of the switch allows for minimal signal attenuation, ensuring the integrity of the transmitted signal is preserved.
• Advanced Power Management: The PI3V713-AZLE features an ultra-low power consumption design, which reduces the thermal footprint and helps in extending the battery life of portable devices.
• ESD Protection: Integrated electrostatic discharge (ESD) protection shields the device against static damage, enhancing its durability and lifespan.

Applications

The versatility of the PI3V713-AZLE makes it suitable for a wide range of applications, including:

• High-definition televisions (HDTVs)
• Computer monitors and graphics cards
• Home theater systems
• Media players and streaming devices
• Switching between HDMI/DVI inputs in multi-source environments

Technical Specifications

The PI3V713-AZLE operates over a wide temperature range and comes in a compact, lead-free, and RoHS-compliant package. It is designed to be pin-compatible with similar devices in the market, facilitating easy upgrades or replacements in existing designs.

In conclusion, the PI3V713-AZLE from Diodes Incorporated is a robust and reliable solution for your high-speed signal switching needs. Its combination of performance, efficiency, and protection features make it an excellent choice for designers looking to enhance their multimedia systems with superior signal integrity and power management.
