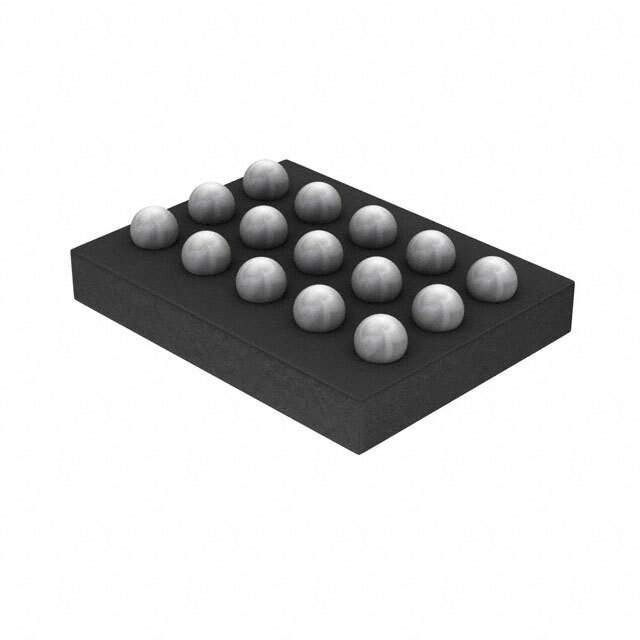

Diodes Incorporated PI3USB9281GEEX USB 2.0 High-Speed Mobile Charger Detection IC

The PI3USB9281GEEX from Diodes Incorporated is a versatile USB 2.0 high-speed switch designed to facilitate mobile charger detection and data communication for a variety of electronic devices. With its advanced detection capabilities, it can identify different types of charging ports, such as standard downstream ports (SDP), charging downstream ports (CDP), and dedicated charging ports (DCP) in accordance with the USB Battery Charging Specification, Revision 1.2.

This integrated circuit (IC) is particularly suitable for mobile applications, including smartphones, tablets, and other portable devices that require efficient charging solutions. The PI3USB9281GEEX enhances user experience by enabling faster charging times and ensuring compatibility with a wide range of charger types.

Key features of the PI3USB9281GEEX include:

• USB 2.0 high-speed (480Mbps) and full-speed (12Mbps) compatible switch
• Automatic detection of USB charging schemes
• Support for USB On-The-Go (OTG) with a 1.8V compatible VBUS detection
• Low on-resistance (RON) for the switch channels, maximizing efficiency
• Integrated single-ended and differential switch for USB 2.0 data lines
• Over-voltage and under-voltage lockout
• Thermal shutdown protection
• Small package size (U-DFN3030-10) suitable for space-constrained applications

The PI3USB9281GEEX also boasts I2C-bus interface support, allowing for easy integration into existing designs and providing flexibility for system control. This feature enables programmable interrupt outputs, which can be used to alert the system when various charger types are detected, enhancing the overall responsiveness of the device.

With its robust protection features, including over-voltage, under-voltage, and thermal shutdown, the PI3USB9281GEEX ensures reliable operation under a range of conditions, safeguarding both the charging circuitry and the device it is powering. Its compact form factor makes it an excellent choice for designers looking to conserve PCB space while maintaining high functionality.

Whether it's for personal electronics, wearable technology, or other portable gadgets, the PI3USB9281GEEX from Diodes Incorporated is an ideal solution for sophisticated charger detection and USB data communication needs.
