Product Overview: PI3CH480ZHDEX from Diodes Incorporated

The PI3CH480ZHDEX is a high-performance, 5V, 4-channel, 2:1 multiplexer/demultiplexer bus switch from the renowned manufacturer Diodes Incorporated. This advanced switch is designed to provide high-speed switching with low on-resistance, making it an ideal choice for applications that require efficient data routing with minimal signal distortion.

Key Features

• High Bandwidth: The PI3CH480ZHDEX boasts a bandwidth of 250 MHz, allowing it to handle high-speed data transfer with ease.
• Low On-Resistance: With an on-resistance of only 5Ω (typical), this switch ensures minimal signal loss and voltage drop, preserving signal integrity.
• 5V Operation: Designed for a 5V power supply, this switch is compatible with a wide range of digital systems.
• Quick Switching: Fast switch times (turn-on and turn-off) of 0.25ns (typical) enable rapid data routing without significant delays.
• Bi-Directional Data Flow: The PI3CH480ZHDEX supports bi-directional operation, allowing it to be used as either a multiplexer or demultiplexer.
• Low Power Consumption: It is optimized for low power consumption, which is critical for battery-powered and energy-efficient devices.

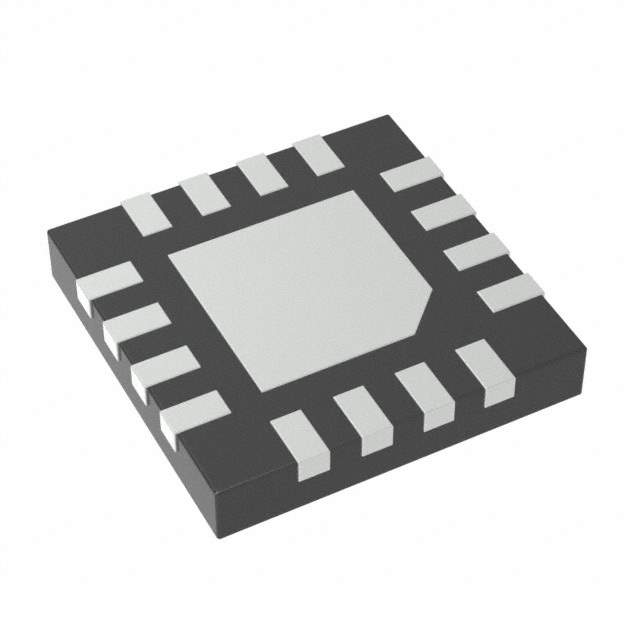

• Multiple Package Options: Available in various package types, including the space-saving U-QFN3030-16, providing flexibility for different PCB layouts.

Applications

The PI3CH480ZHDEX is versatile and can be used in a variety of applications, including:

• High-speed data lines switching for servers and routers
• Signal gating, demultiplexing, and multiplexing in communication devices
• Hot-swapping and docking stations in portable electronics
• Bus isolation and peripheral sharing in computing environments

In summary, the PI3CH480ZHDEX from Diodes Incorporated is a cutting-edge solution for systems that require high-speed, low-resistance switching. Its robust feature set and versatile applications make it a valuable component for designers looking to optimize their data routing capabilities in a compact and energy-efficient manner.
