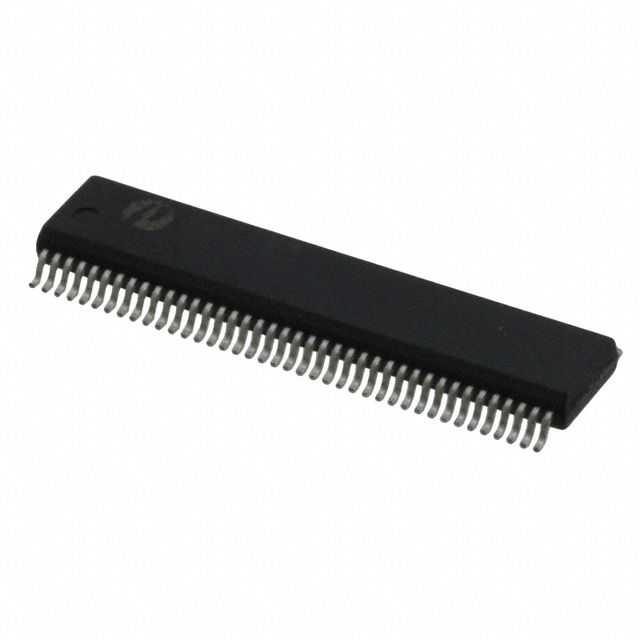

Diodes Incorporated PI3C34X245BE - High-Speed Bidirectional Transceiver

The Diodes Incorporated PI3C34X245BE is a high-performance, 3.3V, 16-bit bidirectional transceiver designed for asynchronous communication between data buses. This component is part of the PI3C series, known for its robustness and reliability in a wide range of applications, including telecommunications, computing, and industrial systems.

Key Features

• High-Speed Data Transfer: This transceiver supports high-speed data exchange, ensuring efficient communication between systems.
• Low Voltage Operation: Operating at 3.3V, the PI3C34X245BE is optimized for low-voltage applications, reducing power consumption and heat dissipation.
• Bus-Hold Feature: The device includes a bus-hold feature that retains the last active state, eliminating the need for external pull-up or pull-down resistors.
• Bi-Directional Interface: The 16-bit bidirectional data path allows for flexible data flow, making it suitable for a wide range of applications.
• Multiple Package Options: Available in a variety of packages, including TSSOP and QSOP, providing flexibility for different design requirements.

Applications

• Telecommunications
• Networking Equipment
• Data Communication Systems
• Servers and Workstations
• Industrial Control Systems

Technical Specifications

The PI3C34X245BE boasts a wide bus-interface capability, with a voltage range from 3.0V to 3.6V. It has an operating temperature range of -40°C to +85°C, making it suitable for industrial environments. The device also features low ON resistance, with a typical Ron of 5Ω, which facilitates lower signal distortion and better output signal quality.

For designers and engineers looking for a reliable transceiver that can handle high-speed data transfer with low-voltage operation, the Diodes Incorporated PI3C34X245BE is an excellent choice. Its robust feature set ensures that it can meet the demands of a variety of complex digital systems.
