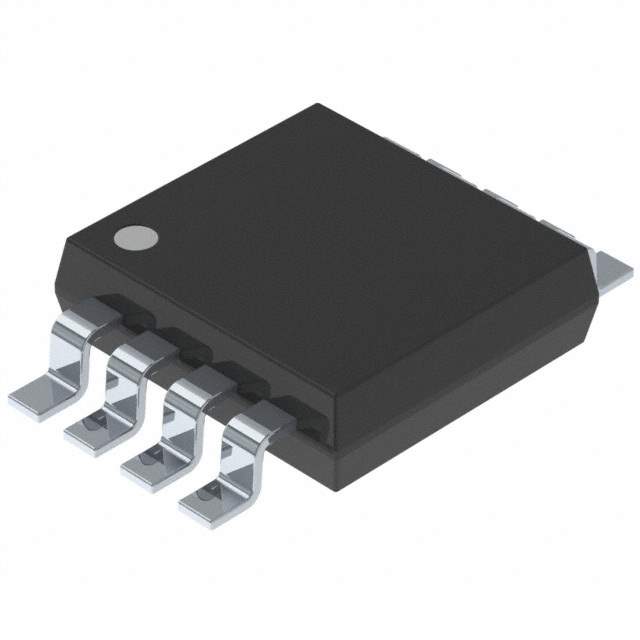

Diodes Incorporated PI3C3306UEX Logic Switch

The PI3C3306UEX from Diodes Incorporated is a high-performance, 2-channel, 2:1 multiplexer/demultiplexer logic switch designed for applications requiring high-speed bidirectional switching of digital signals. This versatile component is a perfect fit for modern electronic systems where space is at a premium and low power consumption is essential.

The device operates over a wide voltage range from 2.3V to 3.6V, which allows it to be used in various logic-level environments. This flexibility makes the PI3C3306UEX suitable for interfacing with different logic families. Moreover, the logic switch boasts a low on-state resistance of typically 5 ohms at 3.3V, ensuring minimal signal distortion and power loss during operation.

One of the key features of the PI3C3306UEX is its break-before-make switching action, which prevents any possibility of signal feedback loops or short circuits during channel switching. This characteristic is crucial for maintaining data integrity and protecting the device from potential damage caused by simultaneous connections between inputs and outputs.

The PI3C3306UEX is designed with an advanced 5-bit binary coding scheme, which simplifies the control logic and reduces the number of GPIOs needed for switch configuration. This coding scheme, combined with its high-bandwidth performance, makes it an ideal choice for applications such as signal routing in networking, communication, and computing where high-speed data transfer and minimal propagation delay are required.

Furthermore, the PI3C3306UEX comes in an ultra-small U-DFN3030-8 (Type B) package, which is optimized for space-saving on PCBs. The compact footprint of this device allows designers to maximize board real estate without compromising performance.

In summary, the Diodes Incorporated PI3C3306UEX logic switch is a highly reliable and efficient solution for designers looking to manage digital signals with precision and ease. Its low-power consumption, broad compatibility with various logic levels, and compact form factor make it an excellent choice for a wide range of high-speed digital applications.
