Diodes Incorporated PI3B3861QE - High-Speed Bus Switch

The PI3B3861QE from Diodes Incorporated is a high-performance, 10-bit bus switch designed with a low On-Resistance, allowing for minimal propagation delay and reduced I/O capacitance. This switch is particularly suitable for switching the signals on high-speed bus lines in applications such as computer motherboards, servers, routers, and telecommunications equipment.

Key Features:

• Low On-Resistance: The PI3B3861QE features a very low dynamic and static resistance, which ensures minimal signal distortion and power loss across the switch.
• High-Speed Operation: Engineered for rapid switching performance, this component is ideal for high-speed data lines, supporting the quick transition times required by modern digital systems.
• 5Ω Bidirectional Switches: The bidirectional switches connect inputs to outputs with a low resistance path when enabled, ensuring signal integrity and efficient data transmission.
• Wide Operating Voltage Range: The device operates over a wide voltage range (4.5V to 5.5V), providing design flexibility for various system voltages.
• Low Power Consumption: The PI3B3861QE is optimized for low power consumption, making it an energy-efficient choice for power-sensitive designs.
• Industrial Operating Temperature: It operates reliably across an industrial temperature range (-40°C to +85°C), ensuring performance in harsh environments.

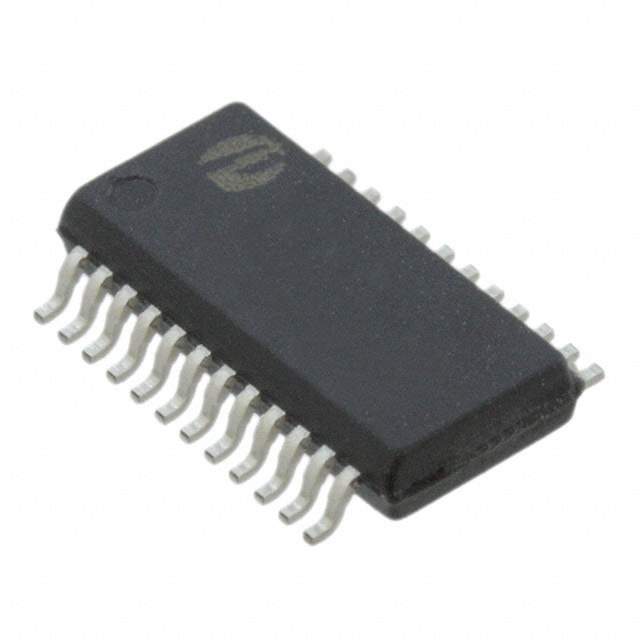

• Packaging: Available in a 24-pin QSOP (Quarter Size Outline Package), the PI3B3861QE is designed for space-saving applications, offering a compact footprint on PCBs.

Applications:

The PI3B3861QE is versatile and can be used in a variety of applications. Its high-speed switching capabilities make it an excellent choice for:

• High-speed data transmission paths
• Bus isolation and switching
• Signal gating
• Backplane switching
• Computer and server systems
• Networking equipment such as routers and switches

The PI3B3861QE is a testament to Diodes Incorporated's commitment to providing high-quality, high-performance components for advanced electronic systems. With its robust feature set and versatile applications, this bus switch is an essential building block for modern digital designs.
