Product Overview: PDS560Q-13 from Diodes Incorporated

The PDS560Q-13 is a high-performance Schottky rectifier designed by Diodes Incorporated, renowned for its efficiency and reliability in a wide range of applications. This rectifier is particularly well-suited for use in power supply circuits, where it contributes to the conversion of alternating current (AC) into direct current (DC) with minimal power loss and heat generation.

With its Schottky barrier technology, the PDS560Q-13 offers a low forward voltage drop, which enhances power efficiency and reduces thermal stress on the device. This characteristic makes it an ideal choice for high-frequency applications where energy conservation is crucial. Moreover, the component features a high surge current capability, providing robust performance in scenarios where transient currents are present.

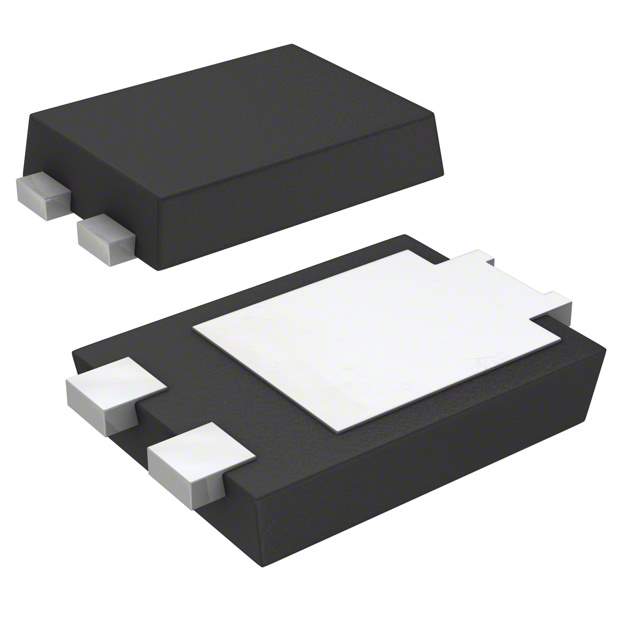

The PDS560Q-13 is packaged in a compact PowerDI5 casing, which not only saves valuable board space but also offers excellent power density. Its surface-mount design allows for efficient assembly in automated manufacturing processes, making it a preferred option for mass-produced electronic devices. The package is also RoHS compliant, ensuring that it meets current environmental standards by avoiding the use of hazardous substances.

Key specifications of the PDS560Q-13 include a maximum average rectified current of 5A, a peak repetitive reverse voltage of 60V, and a maximum forward voltage of 0.55V at 5A. These specifications demonstrate the component's ability to handle significant power levels while maintaining high efficiency.

Overall, the PDS560Q-13 Schottky rectifier from Diodes Incorporated stands out for its low power loss, high surge capacity, and compact footprint. It is a reliable choice for designers and engineers looking to optimize the performance of their power management systems, particularly in compact, high-efficiency applications such as portable devices, LED lighting, and telecommunications equipment.
