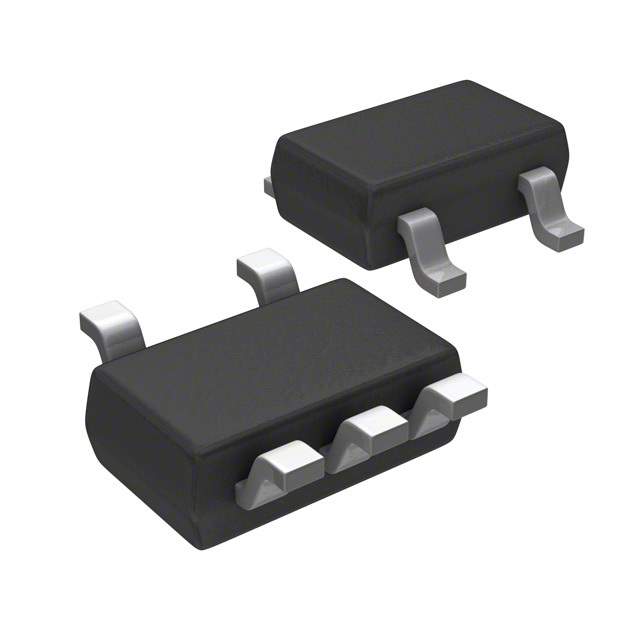

Diodes Incorporated LM4041DH5TA Precision Voltage Reference

The LM4041DH5TA from Diodes Incorporated is a high-precision shunt voltage reference, offering excellent stability and accuracy for a wide range of applications. This component is designed to provide a fixed voltage reference of 1.225V, which serves as a benchmark for analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and other voltage-sensitive components within electronic circuits.

With its small SOT-23 package, the LM4041DH5TA is ideal for space-constrained applications, while its low dynamic impedance and wide operating current range from 45µA to 10mA ensure flexibility and high performance across different load conditions. The device can operate over a broad temperature range of -40°C to 85°C, making it suitable for use in both commercial and industrial environments.

Key features of the LM4041DH5TA include:

• High Accuracy: Initial accuracy is set at ±0.5% for the ‘A’ grade version, ensuring precise voltage regulation for sensitive circuitry.
• Low Temperature Coefficient: This voltage reference offers a low temperature coefficient, typically 100ppm/°C, which contributes to its stable performance over a wide temperature range.
• Wide Operating Current Range: The device's operating current range allows for versatile usage in different power conditions without compromising stability.
• Reverse Breakdown Voltage: The precise reverse breakdown voltage of 1.225V provides a reliable reference point for various electronic components.

Applications for the LM4041DH5TA are diverse, including portable and battery-powered equipment, power supplies, and precision data systems. Its high level of precision also makes it a suitable choice for calibration equipment and test apparatuses where consistent voltage levels are critical.

Overall, the LM4041DH5TA from Diodes Incorporated is a robust and reliable solution for designers looking to incorporate a stable voltage reference into their electronic systems. Its combination of precision, stability, and flexibility makes it an excellent choice for a wide array of precision electronic applications.
