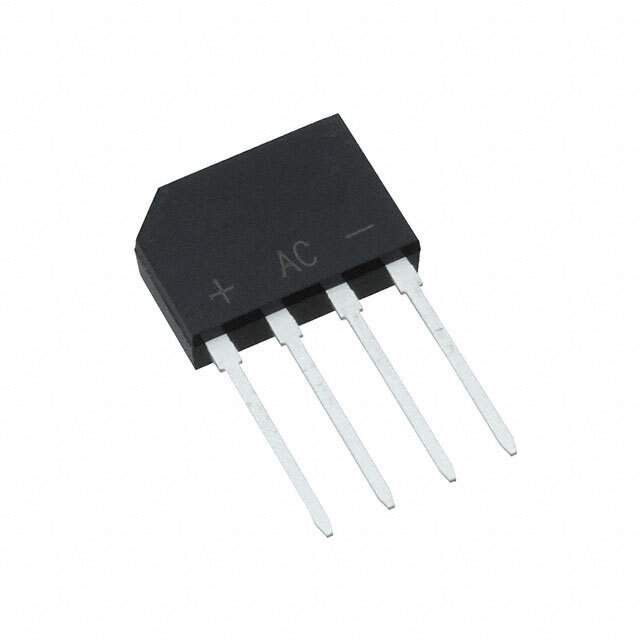

The KBP306G is a single-phase bridge rectifier produced by Diodes Incorporated, a leading manufacturer in the semiconductor market. This robust rectifier is designed to convert an input of alternating current (AC) into a steady direct current (DC), making it an essential component in a wide range of electronic applications.

Key Features

• High Current Capability: The KBP306G is capable of handling a high forward current of 3A, making it suitable for various power supply applications.
• Peak Repetitive Reverse Voltage: It has a peak repetitive reverse voltage (VRRM) of 600V, which ensures it can withstand high voltage environments.
• Surge Overload Rating: This bridge rectifier has an impressive surge overload rating, which helps protect circuits from voltage spikes.
• Low Forward Voltage Drop: The device exhibits a low forward voltage drop, which promotes high efficiency and reduces thermal stress on the component.
• Reliability: Diodes Incorporated is known for its reliability, and the KBP306G is no exception, with a high level of performance stability over its operational lifespan.

Applications

The KBP306G is versatile and can be used in a variety of applications, including:

• Power supplies for consumer electronics
• DC power equipment
• Adapters
• Battery chargers
• Office machines and automation

Physical Characteristics

With a KBP package, the KBP306G is designed for through-hole mounting, which allows for easy assembly and integration into various circuit designs. Its compact size and the ability to operate over a wide temperature range make it suitable for compact power supplies and other applications where space is at a premium.

Environmental and Safety Standards

The KBP306G adheres to international environmental and safety standards, ensuring that it can be used in products that are marketed globally. It is compliant with RoHS directives, which restricts the use of certain hazardous materials in electronic equipment.
